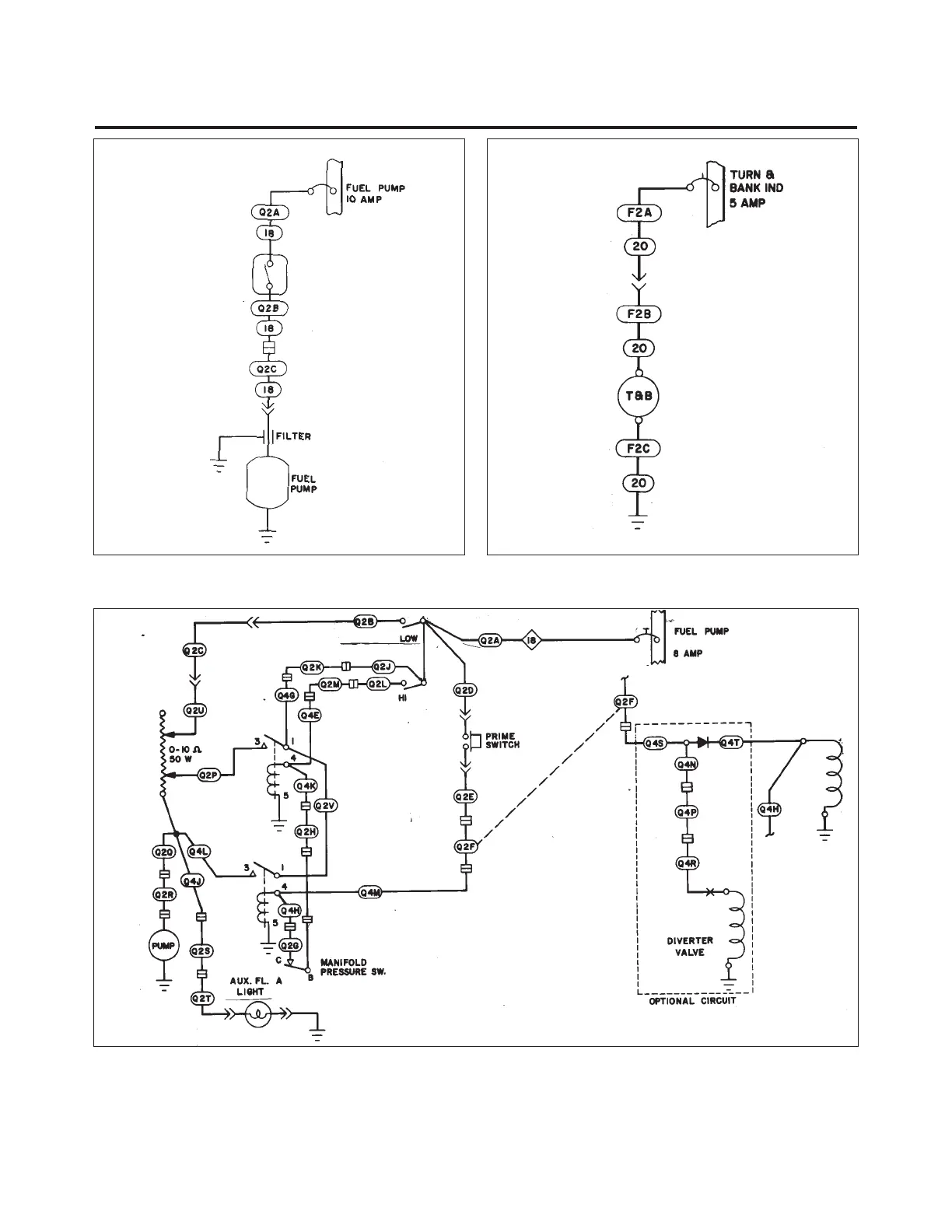

Figure 91-15. Fuel Pump, PA-28RT-201 Figure 91-16. Turn and Bank,
PA-28RT-201 and 201T
Figure 91-17. Fuel Pump, Prime Switch, Diverter Valve
and Manifold Pressure Switch, PA-28RT-201T
91-00-09
Page 91-29
Revised: August 17, 1982
3I17
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
