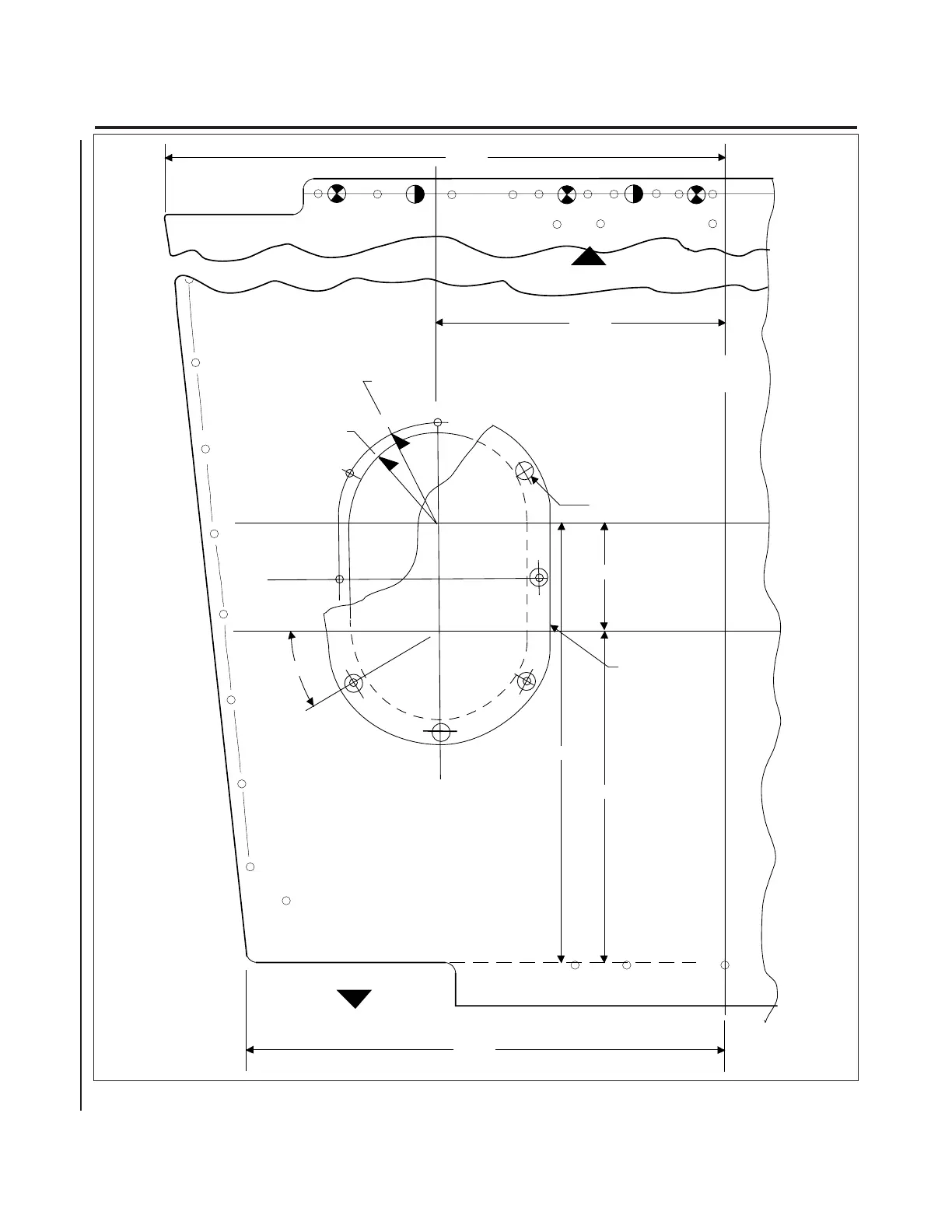

Figure 51-1a. Baggage Compartment Inspection Holes Cutout Details
51-10-01
Page 51-03b
Interim Revision: February 27, 1995
2I12
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
C
L
FORWARD
AFT
14.99”
2.50”
8.48”
30° TYP
2.28” R
TYP
2.00” R
TYP;M
0.120” HOLE THRU
N0.8 X 38 CRES TRUSS
RECESSED HEAD SHEET
METAL SCREWS (16 REQD.)
COVER (2 REQD)
PIPER P/N 62109-0
10.98”
21.80”
19.11”
