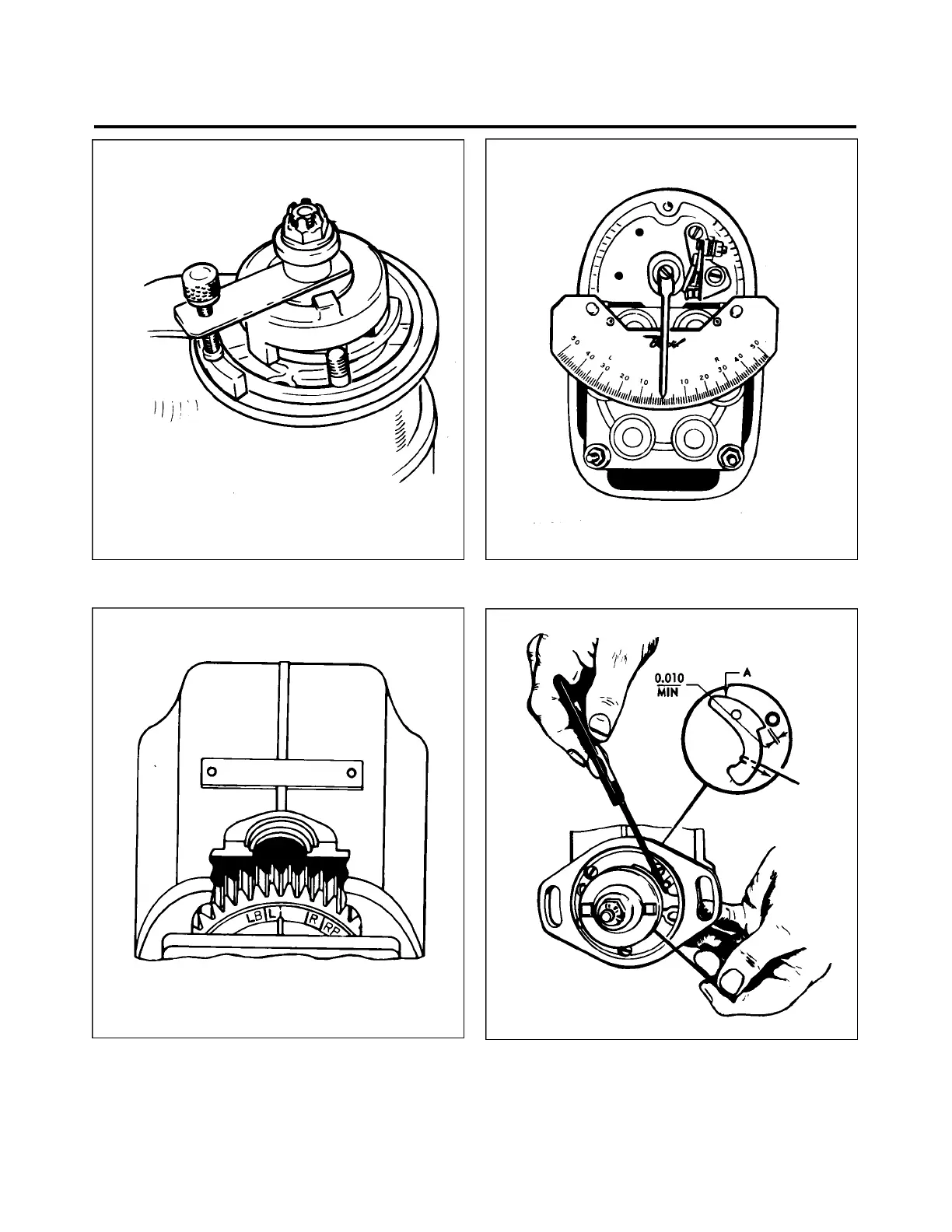

Figure 74-24. Rotor Holding Tool Installed Figure 74-25. Timing Kit Installed
Figure 74-26. Aligning Timing Marks Figure 74-27. Checking Flyweight Clearance
of Impulse Coupling
Effectivity 74-11-01
PA-28RT-201 Page 74-25
December 1, 1978
3E10
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
