SYSTEM mode

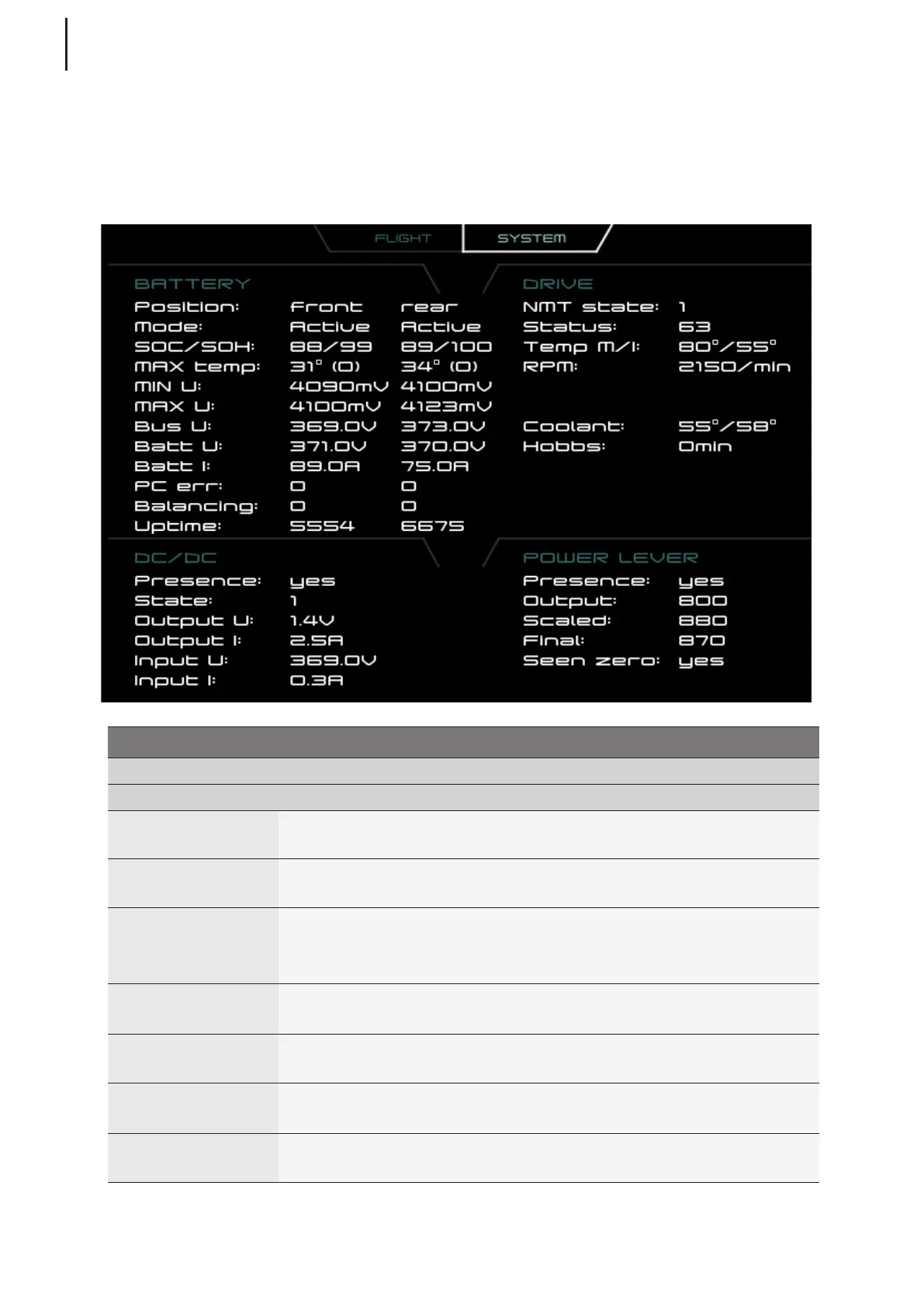

SYSTEM mode shows several diagnostic values of the system components. This mode is selected by
rotating the knob. Refer to the table below for a short description of the parameters.
BATTERY section
One column for each battery
Parameter Description
Mode:
Battery status (ready = connected ; active = connected and power
relays closed ; error )
SOC/SOH: State Of Charge/ State of Health of the HV batteries
MAX temp:
Shows the max temp inside the battery pack, detected by the tem-
perature sensors integrated.
( x ) value: number of temperature sensors not working
MIN V:
MAX V:
Minimum and Maximum voltage value of the cells in each battery
pack.
Bus U:
Voltage on the bus (power lines after the batteries) (0 when batteries
are ready but no power transfer)
Batt V:
Batt I:
Battery voltage and current.
Negative values possible during charging.
PC err: Pre-Charge error. This value is for servicing purposes.
