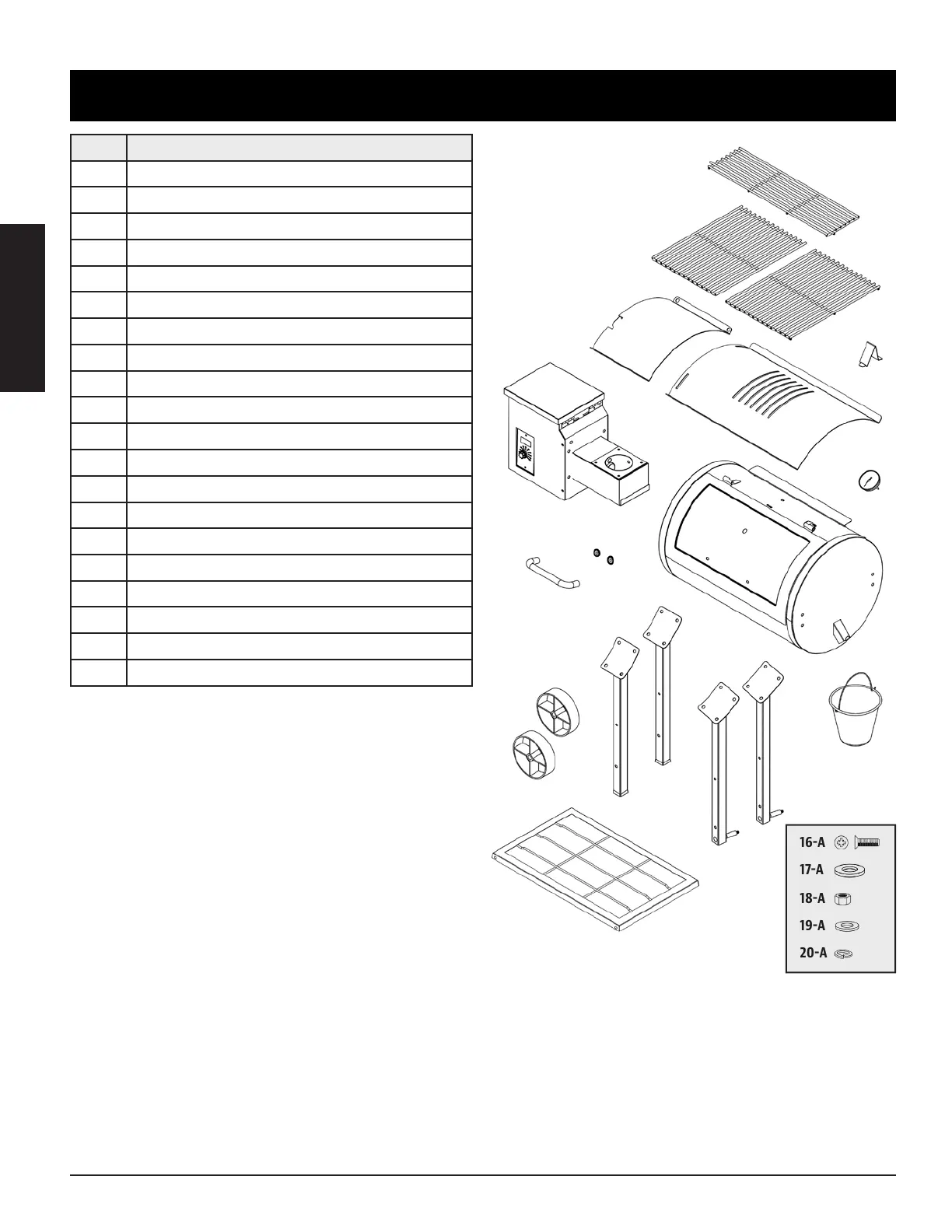

Pit Boss 71700FB - Replacement Parts Identification

ENGLISH
22
 
20
19
18
17
16
1
2
3
4
10
9
11
12
13
15
6
7
8
5
14
Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Cast-Iron Cooking Grids (x2)
3 Lid Stopper (x1)
4 Flame Broiler Slider (x1)
5 Flame Broiler Main Plate (x1)
6 Thermometer (x1)
7 Hopper Assembly (x1)
8 Main Barrel (x1)
9 Bezel (x2)
10 Lid Handle (x1)
11 Metal Wheels (x2)
12 Stationary Leg (x2)
13 Leg with Wheel Axle (x2)
14 Grease Bucket (x1)
15 Bottom Shelf (x1)
16 Screw (x20)
17 Washer (x2)
18 Lock Nut (x2)
19 Washer (x20)
20 Locking Washer (x20)
NOTE: Due to ongoing product development, parts are subject to change without notice.
