10

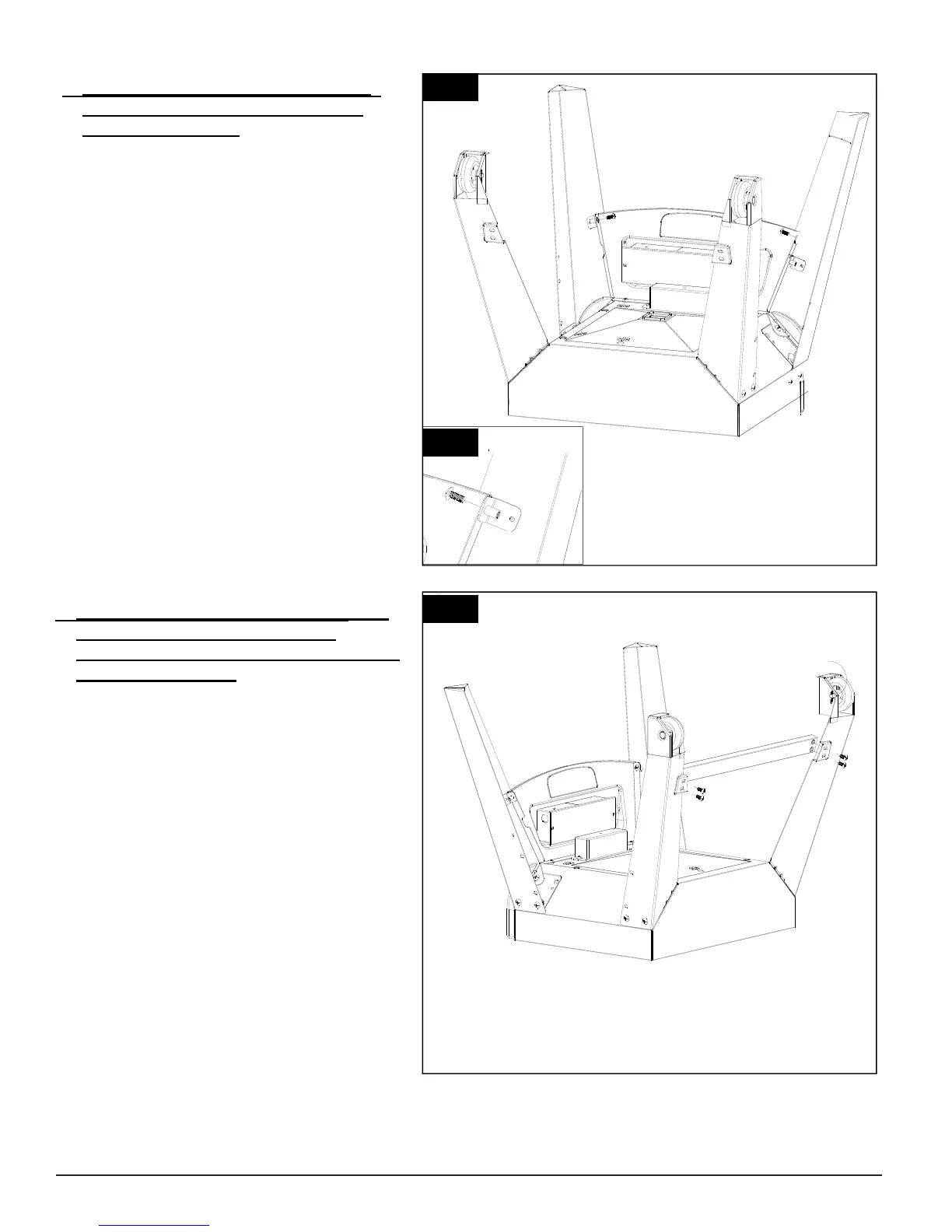

2.
MOUNTING BOTH FRONT LEGS TO
LOWER CABINET WITH CONTROL
PANEL ASSEMBLY
Parts Required:
1 x Lower Smoker Cabinet with Control
Panel Assembly (#14)
1 x Right Front Leg (#22)
1 x Left Front Leg (#19)
2 x #10-24*1/2”Screw (#C)
Installation:
• Loosen 2~3 turns on 2 screws which were
pre-assembled on the Control Panel to
Cabinet before, mount Right Front Leg (#22)
and Left Front Leg (#19) to the Control Panel
Assembly (#14) using 2 x
#10-24*1/2”Screws (#C) and re-tighten 2
screws on the Control Panel to the bottom of
Cabinet as Fig.2 & Fig.2.1 shown.
Fig.2
3.
MOUNTING BACK SUPPORT TUBE TO
RIGHT REAR LEG WITH WHEEL
ASSEMBLY AND LEFT REAR LEG WITH
WHEEL ASSEMBLY
Parts Required:
1 x Back Support Tube (#21)
1 x Right Rear Leg with Wheel Assembly (#17)
1 x Left Rear Leg with Wheel Assembly (#18)
4 x #10-24*1/2”Screw (#C)
Installation:
• Mount Back Support Tube (#21) to the
Right Rear Leg with Wheel Assembly (#17)
and Left Rear Leg with Wheel Assembly
(#18)using 4 x #10-24*1/2”Screws (#C) as
Fig.3 shown.
Fig.3
#19 ----------
#22 --------
Fig.2.1
#21
-------
To Next Page
