10
11.

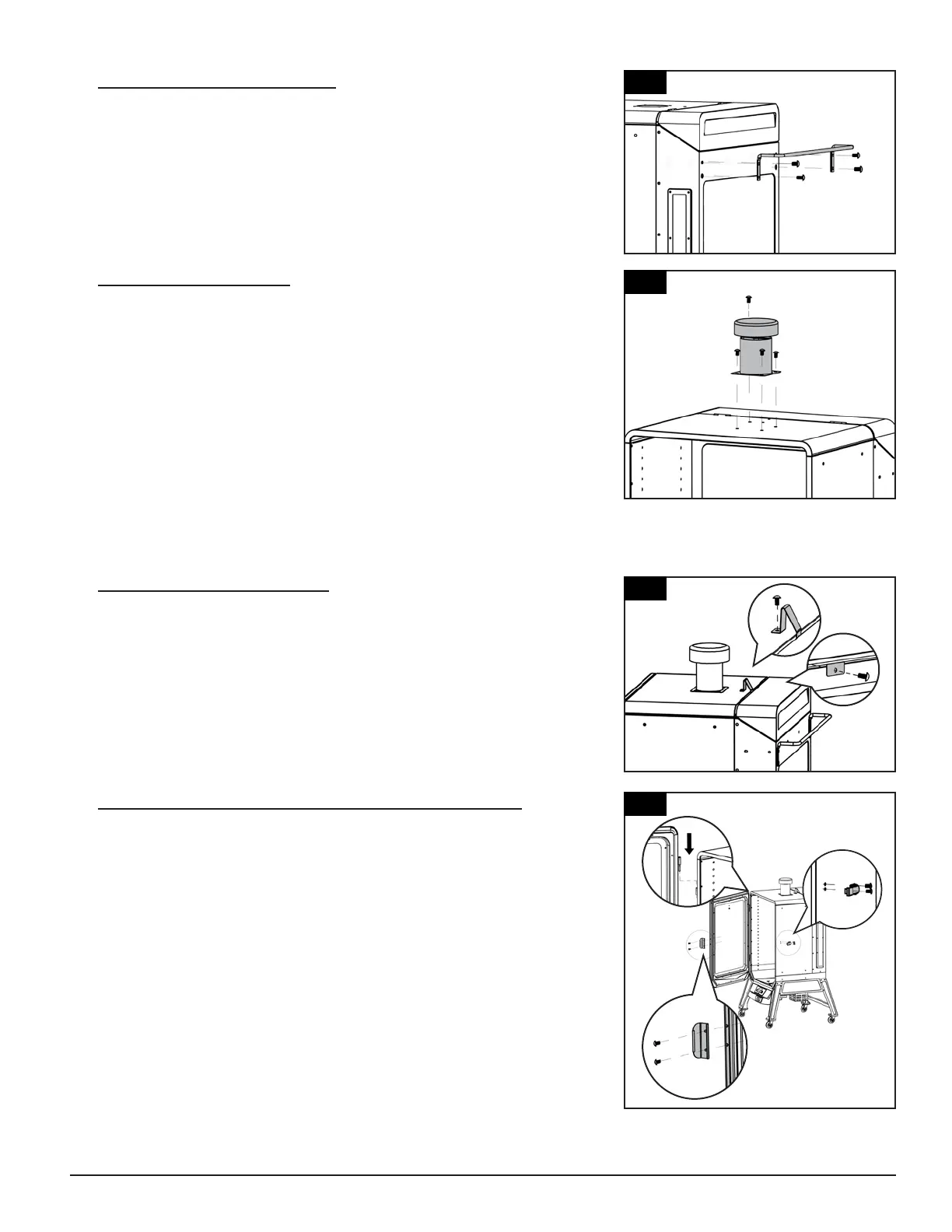

Parts Required:
1 x Hopper Handle
(#5)
4 x ¼–20x⅝" Screw
(#C)
Installation:
• Mount the hopper handle onto the back side of the hopper using four
screws
(#C)
. Note correct position in illustration with handle on top.
12.
Parts Required:
1 x Chimney Cap
(#3)
1 x Chimney Stack
(#4)
4 x #10–24x½" Screw (
#D)
Installation:
• Locate the chimney opening on the top of the main cabinet. From the
outside, secure the chimney stack to the top of the main cabinet using four
screws. The screw will fasten to the self-clinching nuts on the inside of the
cabinet. Next, twist the chimney cap onto the top of the chimney stack.
NOTE: Adjust the chimney cap to affect the airflow inside the main
cabinet. If cooking at low temperature, keep the cap more open.
13.
Parts Required:
1 x Lid Stopper
(#6)
2 x #10–24x½" Screw (
#D)
Installation:
• Install the lid stopper onto the top of the main cabinet near the hopper
lid. Use one screw to secure on the top side, then open the lid and
secure one screw on the inside edge between the hopper lid hinges.
14. ,
Parts Required:
1 x Cabinet Door Handle
(#8)
1 x Cabinet Door Latch
(#9)
4 x #10–24x½" Screw (
#D)
Installation:
• First, remount cabinet door to the main cabinet by aligning and securing both
hinges. Ensure the door is mounted correctly by testing it opens freely. Note 14.
• Mount the cabinet door handle onto the front side of the cabinet door
using two screws. Note correct direction in 14.
• Mount the cabinet door latch onto the exterior side of the main
cabinet using two screws. Note 14.
IMPORTANT: Fine tune and test the cabinet door latches and hooks to
ensure they align properly and there is a proper seal while the door
is closed. Poor alignment may result in heat loss and leaks during use.
11
12
13
14
14
14
14
5
3
4
6
To Next Page
