ENGLISH
16

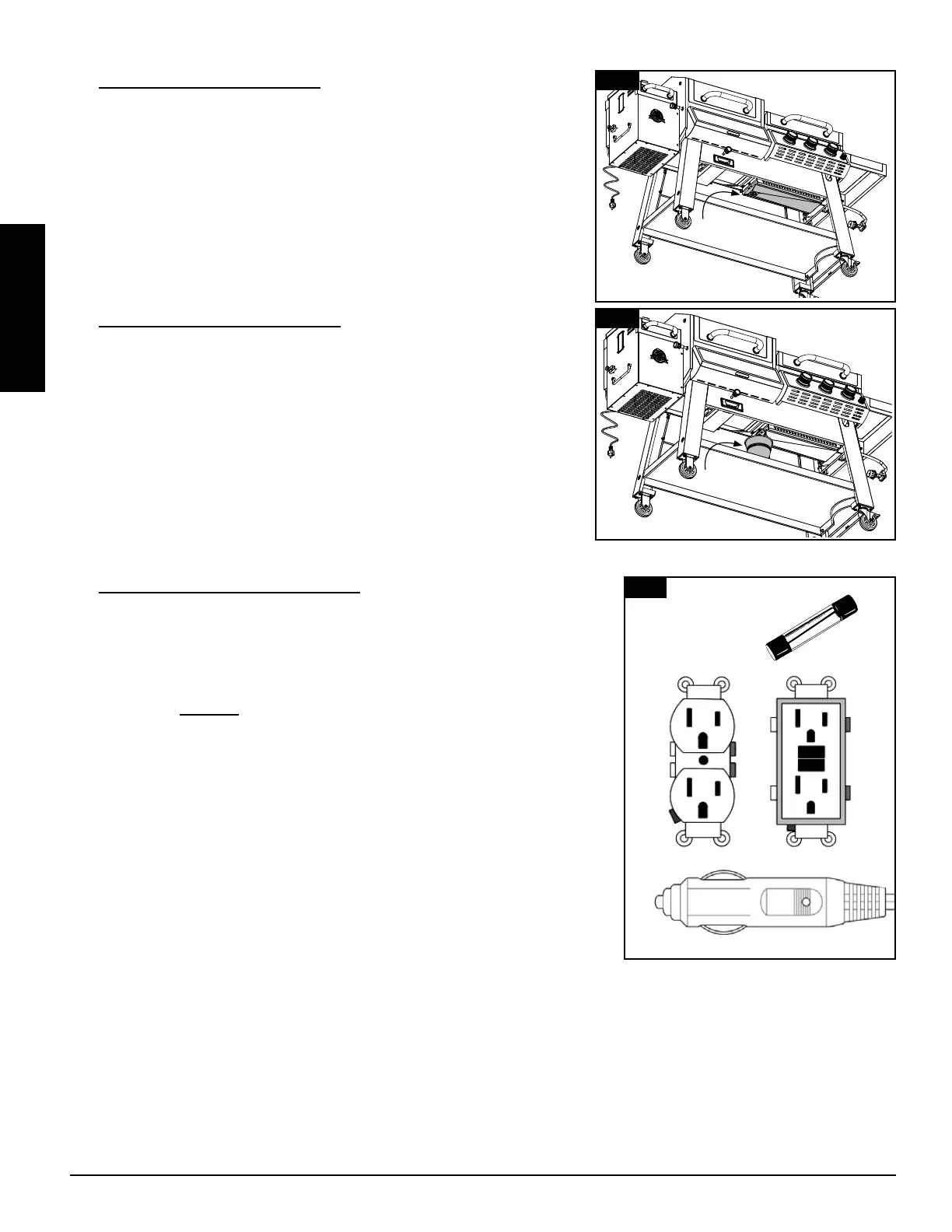

27.
Parts Required:
1 x Grease Tray
(#12)
Installation:
• Mount the Grease Tray to the Main Barrel/Hopper Assembly.
28.
Parts Required:
1 x Grease Bucket
(#26)
Installation:
• Mount the Grease Bucket to the Main Barrel/Hopper Assembly.
• The unit is now completely assembled.
29.
NOTE: Before plugging your Pit Boss® into any electrical outlet, ensure
the temperature dial is in the OFF position.
•
This appliance requires 120 volt, 60hz, 300W, 5 amp service. It must be a
3-prong grounded plug. Ensure grounded end is not broken off before use.
The control uses a 5 amp, 120 volt, fast-blow fuse to protect the board from
the igniter.
•
This appliance will work on most GFCI outlets, with a recommended size
of 15 amp service. If your GFCI outlet is highly sensitive to power surges,
it will likely trip during the start-up phase of operation. During the start-
up phase, the igniter draws 200-700 watts of electricity which can be too
much power for a GFCI outlet to handle. Each time it trips, it increases in
sensitivity. If the GFCI keeps tripping, replace the outlet or change to a non-
GFCI outlet.
•
Disconnect the igniter and the light from the main wiring harness. Use the
manual start-up procedure. A Pit Boss® unit can operate using a 12 volt, 100
watt inverter plugged into your automobile outlet. To use the automatic
igniter, it is recommended to use a minimum of a 1000 watt inverter.
IMPORTANT: Disconnect unit from power source when not in use.
29
,
5
27
12
28
26
