SSPG14: Floor Model High Efficiency Gas Pasta Cooker INSTALLATION
L20-331, rev.02 (08/11) 11

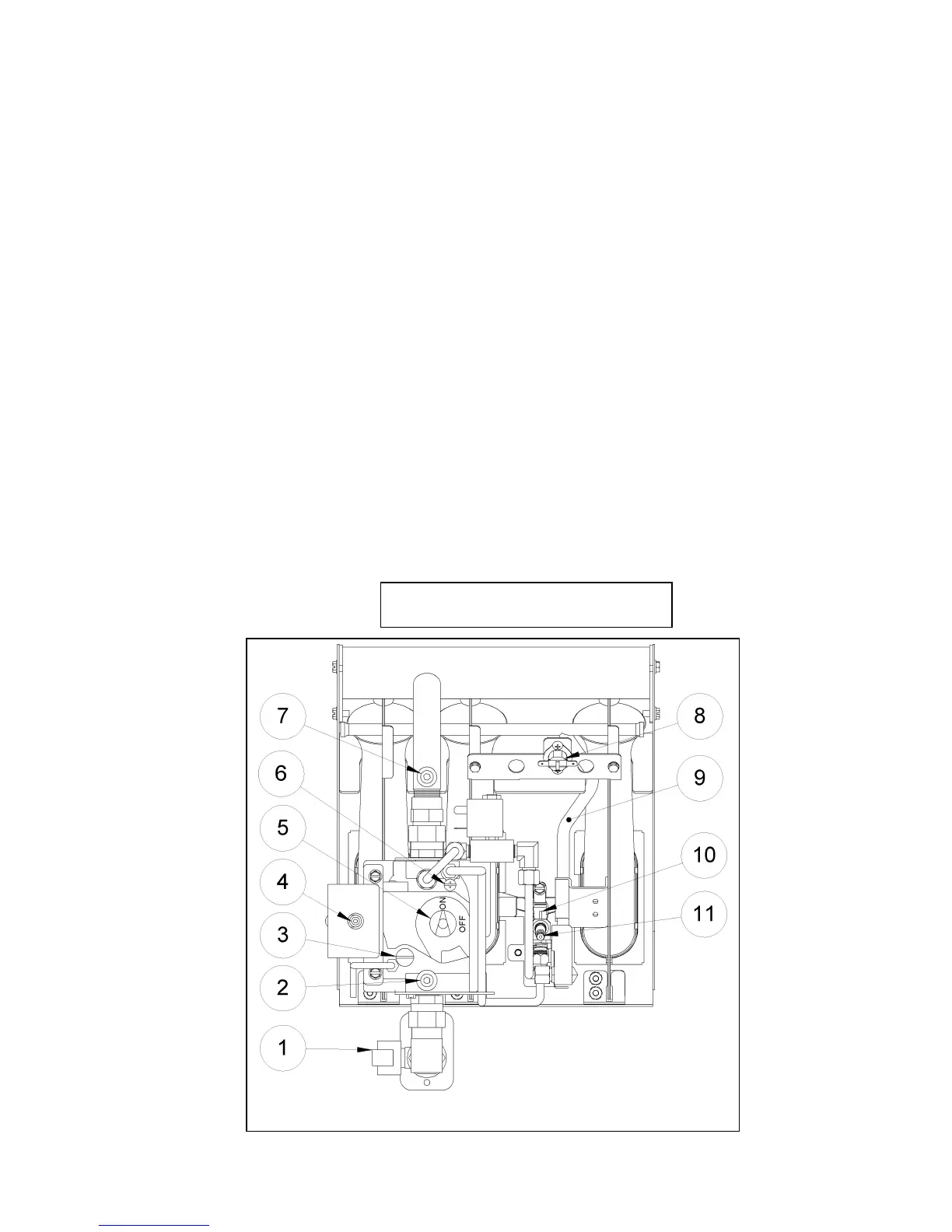

FIGURE 2
Note: This procedure requires the
use of a DC microammeter.
1.9.3. SELF CLEANING BURNER SYSTEM
The Self Cleaning Burner System (SCBS) is a self contained system inside your appliance which operates
automatically once each time the appliance is turned “ON”.
The Pitco Self Cleaning Burner System is designed to help maintain proper operation and efficiency of your
appliance’s combustion system by minimizing the build up of any foreign material inside the burner housings.
Proper installation of this upgrade and periodic maintenance of the appliance are critical to safe, reliable and
efficient operation.
1.9.4. PILOT FLAME ADJUSTMENT
Perform this procedure with the pilot lit.
1. Connect the DC microampmeter between the Pilot flame sensor terminal (11) and the ignition wire
(Not Shown). Observe proper polarity: if the meter needle goes below 0, reverse the leads. The
current reading must be 1.0 µA or greater, (0.15 µA or greater for CE units).
2. If the current reading is below the required µA level, the level can be increased by adjusting the pilot
flame. Remove the pilot adjustment cap screw (6) to expose the pilot adjustment needle screw. Turn
the needle screw counter clockwise (CCW) to increase the size of the pilot flame and flame sense
current. Turning the pilot adjustment needle screw clockwise (CW) will decrease the pilot flame size
and the flame sense current.
3. Rotate the screw in the direction needed to achieve a reading of 1.0 µA or greater, (0.15 µA or greater
for CE units).
Note: Allow 3 to 5 minutes between flame adjustments to allow the reading to stabilize.
4. Once the pilot flame has been adjusted properly, replace the pilot adjustment screw cap screw and
remove the microammeter.
