pitsco tetrix prime Setup Guide

Continuous Run Servo Assembly
In order to facilitate ease of construction, the servo motors require preassembly. Locate the continuous
run servo kit, which can be identified using the label attached to the servo. You will need the
continuous run servo with screw, the servo mount with screws, a servo shaft hub, and a setscrew.

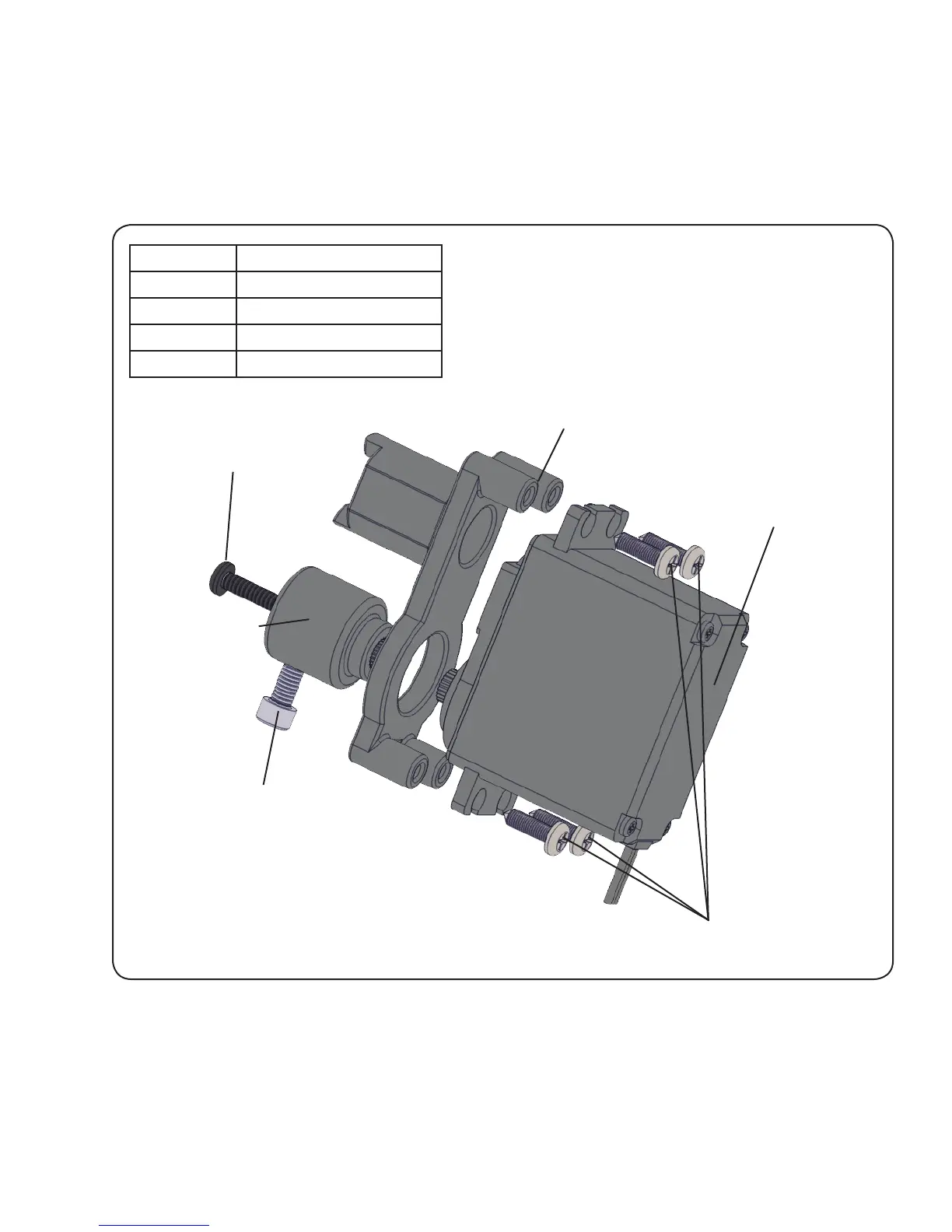

You will also need Phillips-head and socket-head screwdrivers. Assemble the continuous run servo as
indicated in the illustrations.
Quantity Part
1 Continuous Run Servo
1 Servo Mount
1 Setscrew
1 Servo Shaft Hub
Servo Mount
Continuous Run Servo
Self-Tapping Screw
Servo Shaft Hub
Setscrew
Servo Horn Screw
