pitsco tetrix prime Setup Guide

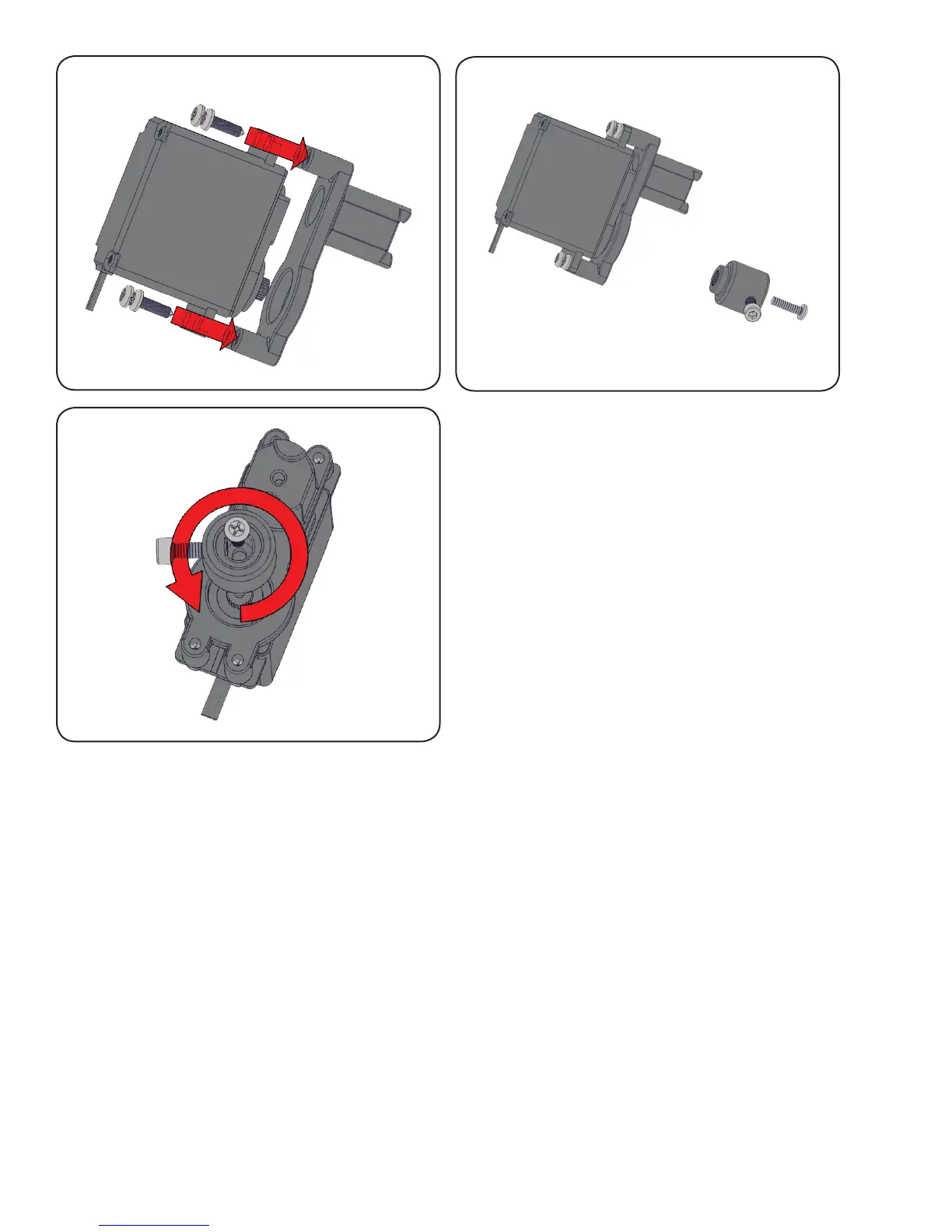

Step 1
Step 2
Step 3
Before attaching the servo hub, you must make
sure the server is in the neutral position. To do
this, connect both the servo and the battery
to the receiver and turn on the power to the
remote transmitter. Make sure both joysticks and
trimmers are in the center, or neutral, position.
The servo motor will move to its neutral position.
Line up the splines on the hub with the splines
on the servo and press the two parts together.
The setscrew should line up as close as possible
with the center of the servo case. Tighten the
screw holding the hub in place.
14
