Pittsburgh Modular Taiga - Clock Sources and Keyboard Control

5.10 External MIDI Clock Source:
The external MIDI clock responds to MIDI start/stop messages and MIDI tempo from an external
MIDI clock source. In external MIDI clock mode, the [Clock Button] acts as a clock divider
cycling through 4 available clock divisions. ÷ 1, ÷ 2, ÷ 4, ÷ 8. Set the MIDI clock division by
pressing the [Clock Button]. Press once to check current mode. Press again to advance
through the available options. The MIDI clock division is saved in memory and recalled when
Taiga is powered on. The [Control Clock Out Jack] functions as a clock output source in MIDI
clock mode and outputs a outputs a +5v 10ms gate signal.
External MIDI Clock Divider Options Shown on All 3 Oscillator LEDs
Divided by 8
Divided by 4
Divided by 2
Divided by 1
5.11 External Gate Clock:
The external gate clock uses an external gate signal to trigger the clock. In external gate clock
mode, the [Clock Button] acts as a clock divider cycling through 4 available clock divisions. ÷ 1,
÷ 2, ÷ 4, ÷ 8. Set the external gate clock division by pressing the [Clock Button]. Press once to
check current mode. Press again to advance through the available options. The external gate
clock division is saved in memory and recalled when Taiga is powered on. The [Control Clock
Input Jack] functions as a clock input in External Gate Clock mode and triggers the clock with
the rising edge of most waveforms that rise above 2.5v. The [Control Clock Out Jack] functions
as a clock output source in External Gate Clock mode and outputs a outputs a +5v 10ms gate
signal.
External MIDI Clock Divider Options Shown on All 3 Oscillator LEDs
Divided by 8
Divided by 4
Divided by 2
Divided by 1
5.12 Internal Pseudo-Random Clock Source:
Internal random clock is based on the tap-tempo but randomly adds or subtracts up to 90% of
the clock rate per step. The random clock is very sloppy and will not sync properly with
anything. The [Control Clock Out Jack] functions as a clock output source in Random Clock
mode and outputs a outputs a +5v 10ms gate signal.

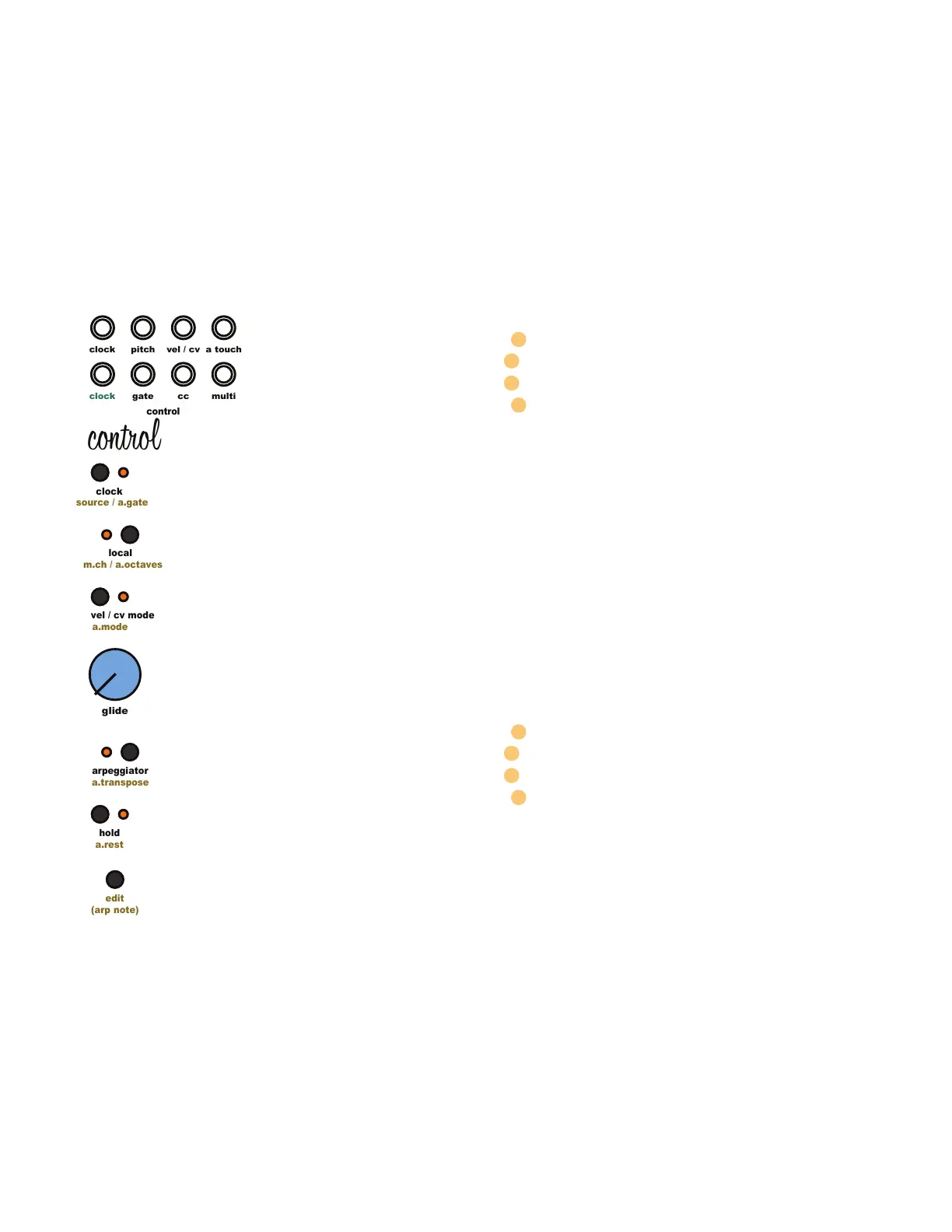

5 Control Module
