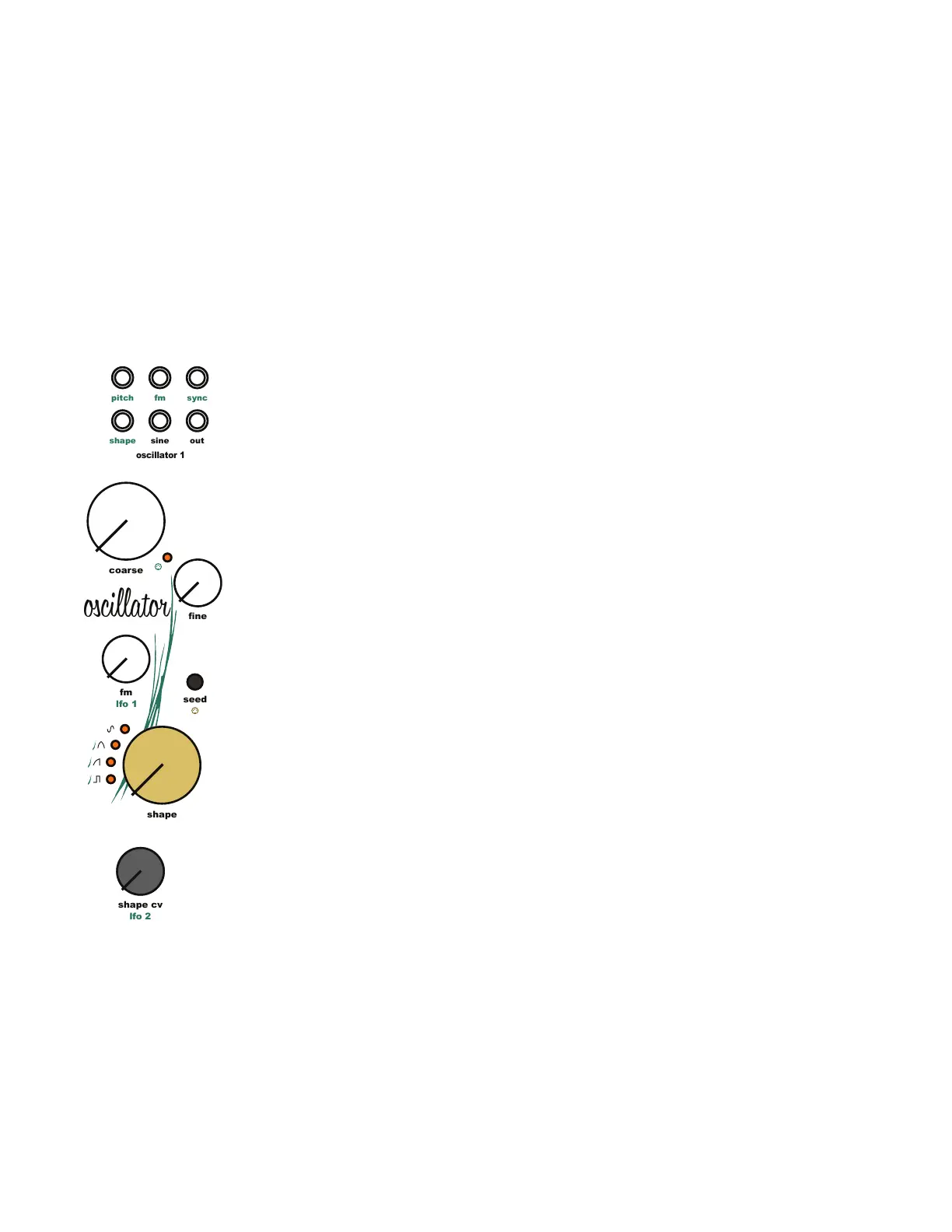

6.10 Oscillator Input Jacks:
[Osc Pitch Input Jack] 1 volt per octave pitch input jack.
[Osc FM Input Jack] Frequency modulation input jack. The [Osc FM Input Jack] is normaled to
the LFO Triangle wave output. Plugging a patch cable into the [Osc FM Input Jack] will remove
the LFO from the signal path.
[Osc Sync Input Jack] Hard sync input jack.
[Osc Shape CV Input Jack] Shape control CV input jack. The [Osc Shape CV Input Jack] is
normaled to the LFO Triangle wave output. Plugging a patch cable into the [Osc Shape CV
Input Jack] will remove the LFO from the signal path.
6.11 Oscillator Output Jacks:
[Osc Sine Output Jack] Clean sine wave output jack.
[Osc Audio Output Jack] Main oscillator output based on the selected seed wave and shape
settings. This waveform is normaled to a Mixer input jack.
6 Oscillator Modules
lfo 2
sine
fm
out
sync
pitch
shape
oscillator 1
shape
shape cv
coarse
ne
fm
seed
lfo 1
fm
oscillator
