9.5 PGH Filter Input Jacks:
[Filter Frequency CV 1 Jack] Frequency modulation input jack. The [Filter Frequency CV 1 Input
Jack] is normaled to the LFO Triangle wave output. Plugging a patch cable into the [Filter
Frequency CV 1 Input Jack] will remove the LFO from the signal path.
[Filter Frequency CV 2 Jack] Frequency modulation input jack. The [Filter Frequency CV 2 Input
Jack] is normaled to the ADSR 1 output. Plugging a patch cable into the [Filter Frequency CV 2
Input Jack] will remove the ADSR 1 from the signal path.
[Filter In Jack] Filter audio input jack. The [Filter In Jack] is normaled to the mixer output.
Plugging a patch cable into the [Filter In Jack] will remove the mixer output from the signal
path.
9.6 PGH Filter Output Jacks:
[Filter Output Jack] Filter audio output jack.

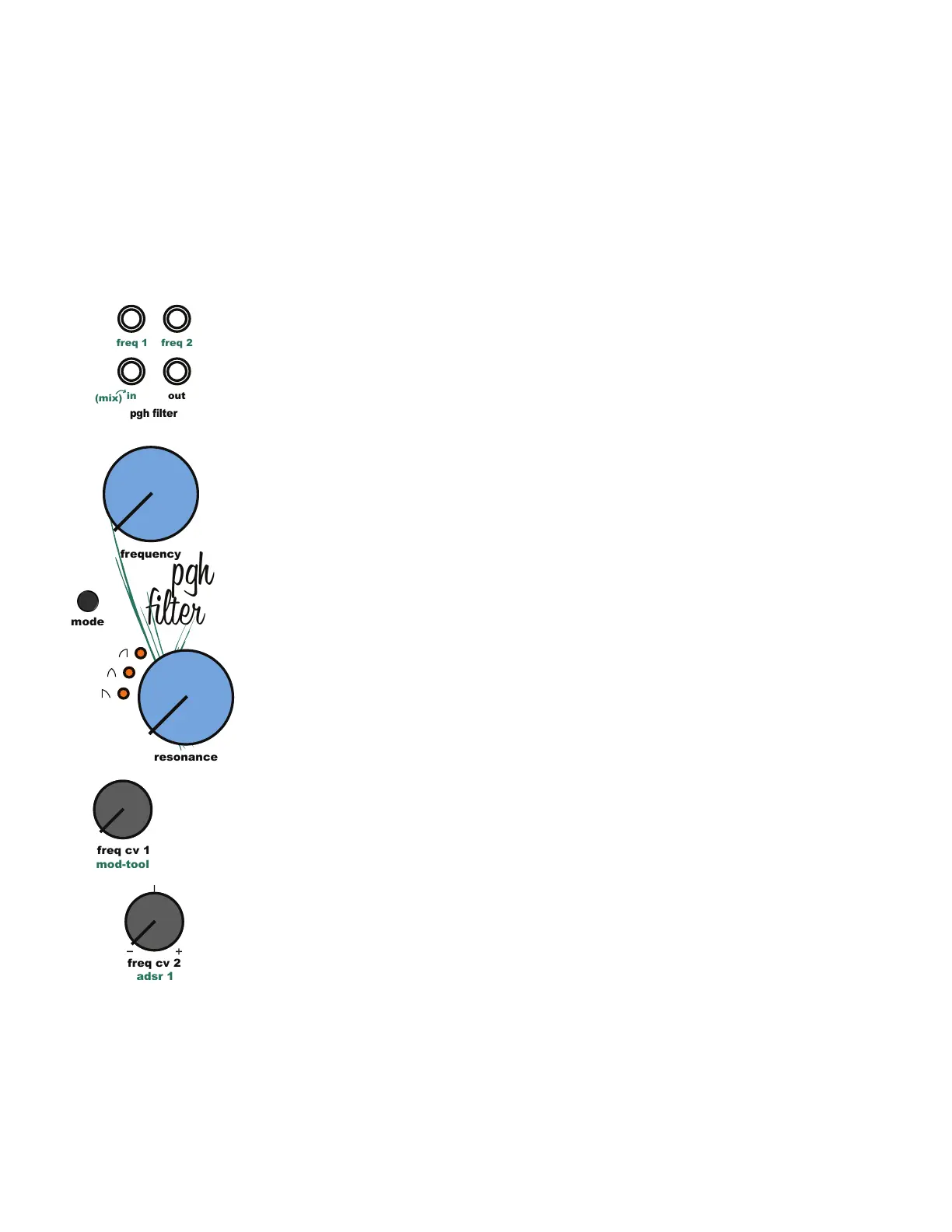

freq cv 1
pgh lter
out
freq 2freq 1
in
mode
mod-tool
(mix)
pgh
lter
resonance
frequency
freq cv 2
adsr 1
_
_
_
9 PGH Filter Module
