EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
EN (translated from italian)
CUBE • MC

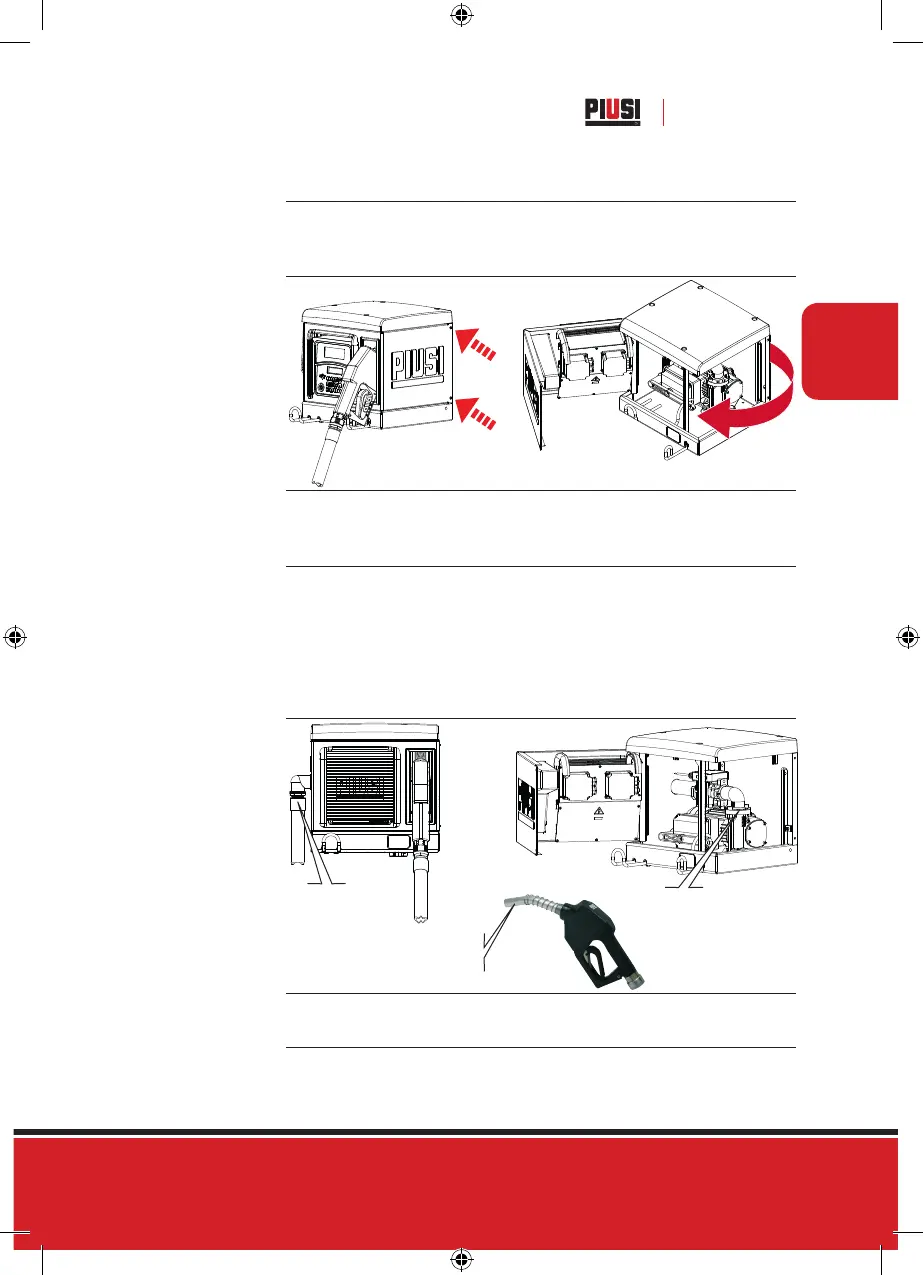

OPENING AND
CLOSING THE
CUBE MC
-Lower the display cover
-Loosen the 2 screws on the right side (marked by the arrows)
-Open the inspection side of the CUBE MC
-To reclose it, perform these steps in reverse order.
PUMP
AND
PIPES
Check the pump, the pipes and other internal components of the station and
keep them clean. Make sure there are no leaks in the flanged or threaded
connections and that the hoses are in perfect condition (not damaged) - refer
to the pump and meter manuals.
DISPENSER
PIPE AND
NOZZLE
Keep the dispenser pipe and nozzle clean and make sure especially that:
- The pipe is in perfect condition and has not been damaged by vehicle tran-
sit.
- The threaded connections are tight and not leaking.
- The swivel connections (at dispenser exit and on the nozzle) are turning
freely and do not show leaks.
- Keep the dispensing tube and nozzle clean and check that the automatic
stop feeler holeat the end of the spout is always clean.
SWIVEL
CONNECTIONS
FLANGED
CONNECTIONS
PROBE HOLE
AUTOMATIC
STOP
(SPOUT)
“MC”
CONTROL
SYSTEM
The MC system is maintenance free. To control it however, refer to the dedi-
cated manual provided.
