Planar Dome EX - Connector Ports

Connector Ports | 27
Connector Ports
The video signal connector is a standard DVI connector, driving data
to the display.
The Dome E2 display use a 4-pin DIN connector. The power input is
12V ±5% (80 W).
The Dome E3, Dome E3c, and Dome E5 displays use a 8-pin DIN
connector. The power input is 12V ±5% (120 W).

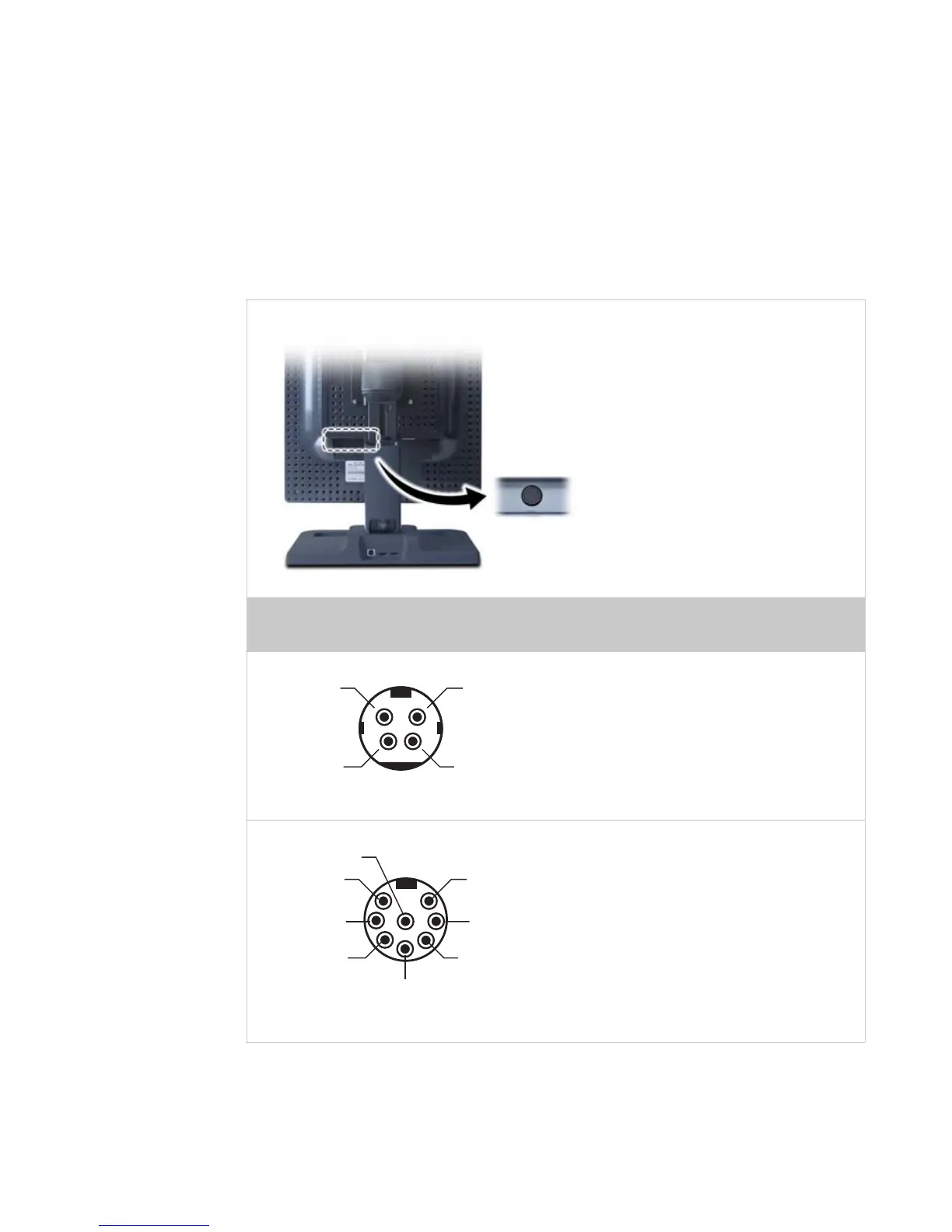

Location of power port on
back of display
Details of DIN connectors
4-pin connector on
Dome E2 displays
8-pin connector on
Dome E3, Dome E3c, and
Dome E5 displays
VCC 1 2 GND
GND 3
4 VCC
VCC 7
VCC 8
1 GND
VCC 5 3 GND
2 GND
VCC 6
4 GND
