Planar PL1900 - Appendix: Connector Assignments; Connector Pin Assignments

22
APPENDIX (cont.)

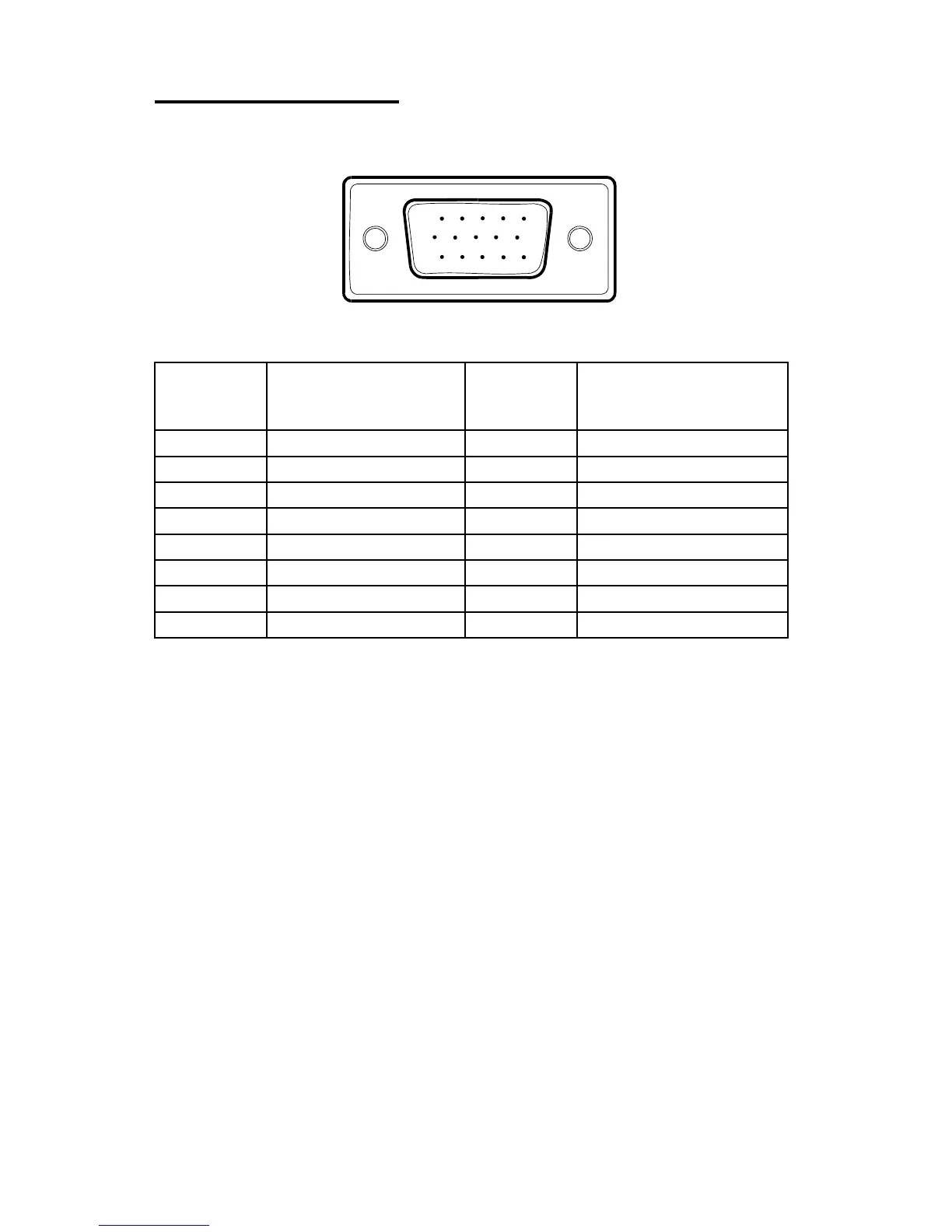

CONNECTOR PIN ASSIGNMENT
15
6
10
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. Red 9. +5V
2. Green 10. Ground
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Detect Cable 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
