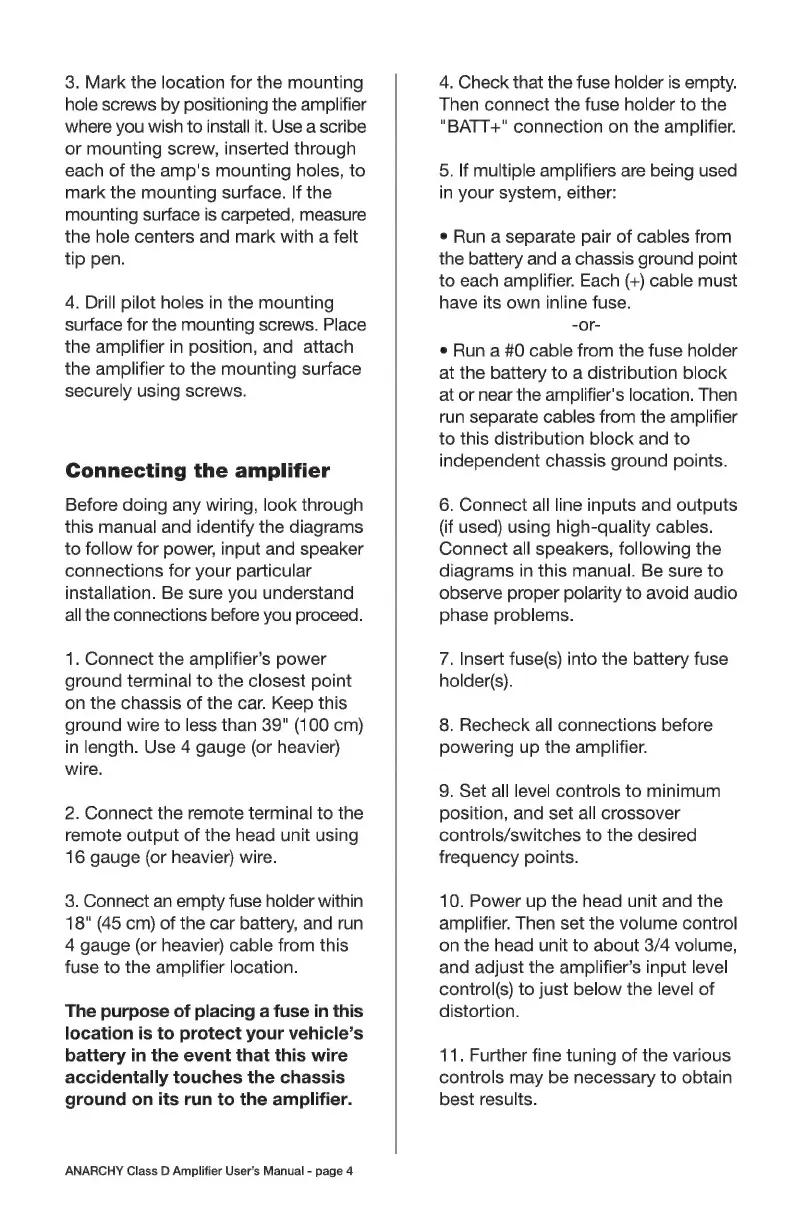

3. Mark the location for the mounting
hole screws by positioning the amplifier
where you wish to install it. Use a scribe
or mounting screw, inserted through
each of the amp's mounting holes, to
mark the mounting surface. If the
mounting surface is carpeted, measure
the hole centers and mark with a felt
tip pen.
4. Drill pilot holes in the mounting
surface for the mounting screws. Place
the amplifier in position, and attach
the amplifier to the mounting surface
securely using screws.
Connecting the amplifier
Before doing any wiring, look through
this manual and identify the diagrams
to follow for power, input and speaker
connections for your particular
installation. Be sure you understand
all the connections before you proceed.
1. Connect the amplifier’s power
ground terminal to the closest point
on the chassis of the car. Keep this
ground wire to less than 39" (100 cm)
in length. Use 4 gauge (or heavier)
wire.
2. Connect the remote terminal to the
remote output of the head unit using
16 gauge (or heavier) wire.
3. Connect an empty fuse holder within
18" (45 cm) of the car battery, and run
4 gauge (or heavier) cable from this
fuse to the amplifier location.
The purpose of placing a fuse in this
location is to protect your vehicle’s
battery in the event that this wire
accidentally touches the chassis
ground on its run to the amplifier.
ANARCHY Class D Amplifier User's Manual - page 4
4. Check that the fuse holder is empty.
Then connect the fuse holder to the
"BATT+" connection on the amplifier.
5. If multiple amplifiers are being used
in your system, either:
e Run a separate pair of cables from
the battery and a chassis ground point
to each amplifier. Each (+) cable must
have its own inline fuse.
-Or-
e Run a #0 cable from the fuse holder
at the battery to a distribution block
at or near the amplifier's location. Then
run separate cables from the amplifier
to this distribution block and to
independent chassis ground points.
6. Connect all line inputs and outputs
(if used) using high-quality cables.
Connect all speakers, following the
diagrams in this manual. Be sure to
observe proper polarity to avoid audio
phase problems.
7. Insert fuse(s) into the battery fuse
holder(s).
8. Recheck all connections before
powering up the amplifier.
9. Set all level controls to minimum
position, and set all crossover
controls/switches to the desired
frequency points.
10. Power up the head unit and the
amplifier. Then set the volume control
on the head unit to about 3/4 volume,
and adjust the amplifier’s input level
control(s) to just below the level of
distortion.
11. Further fine tuning of the various
controls may be necessary to obtain
best results.
