Planet Audio AC3000.1D User Manual

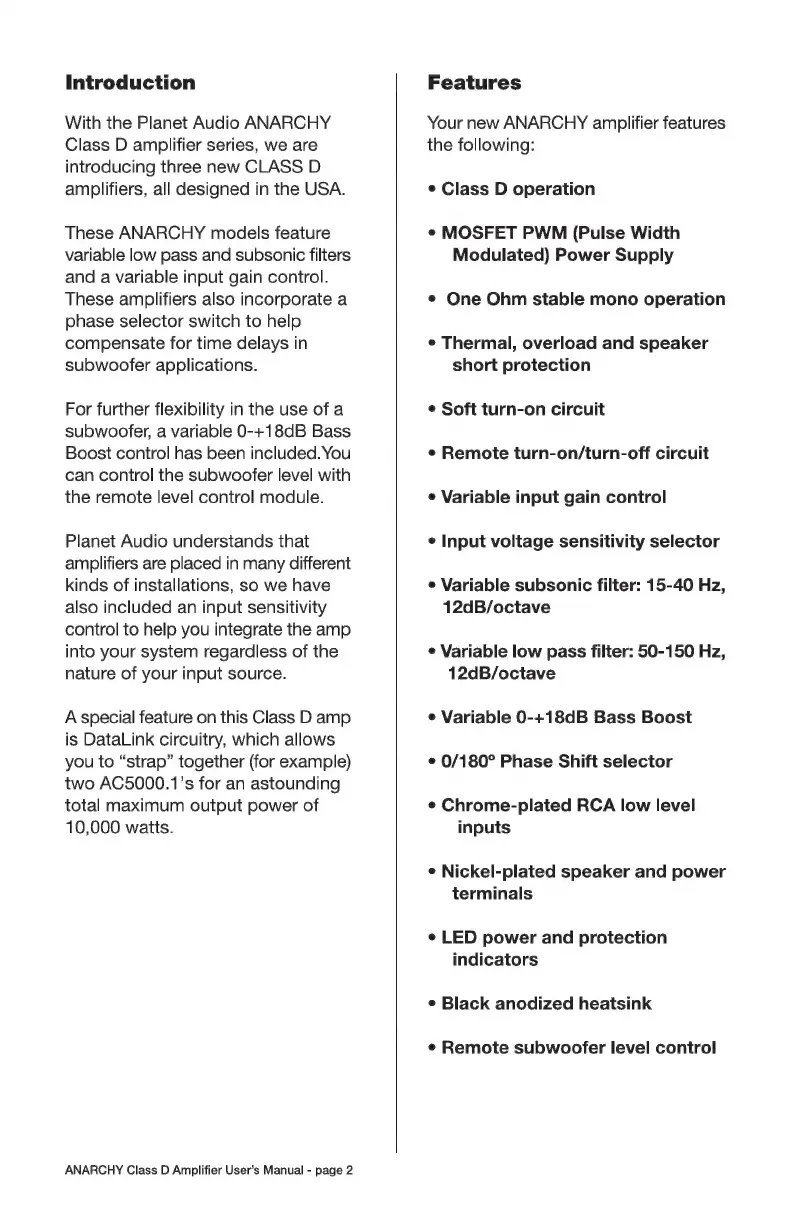

Introduction
With the Planet Audio ANARCHY
Class D amplifier series, we are
introducing three new CLASS D
amplifiers, all designed in the USA.
These ANARCHY models feature
variable low pass and subsonic filters
and a variable input gain control.
These amplifiers also incorporate a
phase selector switch to help
compensate for time delays in
subwoofer applications.
For further flexibility in the use of a
subwoofer, a variable 0-+18dB Bass
Boost control has been included. You
can control the subwoofer level with
the remote level control module.
Planet Audio understands that
amplifiers are placed in many different
kinds of installations, so we have
also included an input sensitivity
control to help you integrate the amp
into your system regardless of the
nature of your input source.
A special feature on this Class D amp
is DataLink circuitry, which allows
you to “strap” together (for example)
two AC5000.1’s for an astounding
total maximum output power of
10,000 watts.
ANARCHY Class D Amplifier User’s Manual - page 2
Features
Your new ANARCHY amplifier features
the following:
e Class D operation
e MOSFET PWM (Pulse Width
Modulated) Power Supply
e One Ohm stable mono operation
e Thermal, overload and speaker
short protection
e Soft turn-on circuit
e Remote turn-on/turn-off circuit
e Variable input gain control
e Input voltage sensitivity selector
e Variable subsonic filter: 15-40 Hz,
12dB/octave
e Variable low pass filter: 50-150 Hz,
12dB/octave
e Variable 0-+18dB Bass Boost
e 0/180° Phase Shift selector
e Chrome-plated RCA low level
inputs
e Nickel-plated speaker and power
terminals
e LED power and protection
indicators
e Black anodized heatsink
e Remote subwoofer level control

Planet Audio AC3000.1D Specifications
