Planet Audio AC3000.1D User Manual

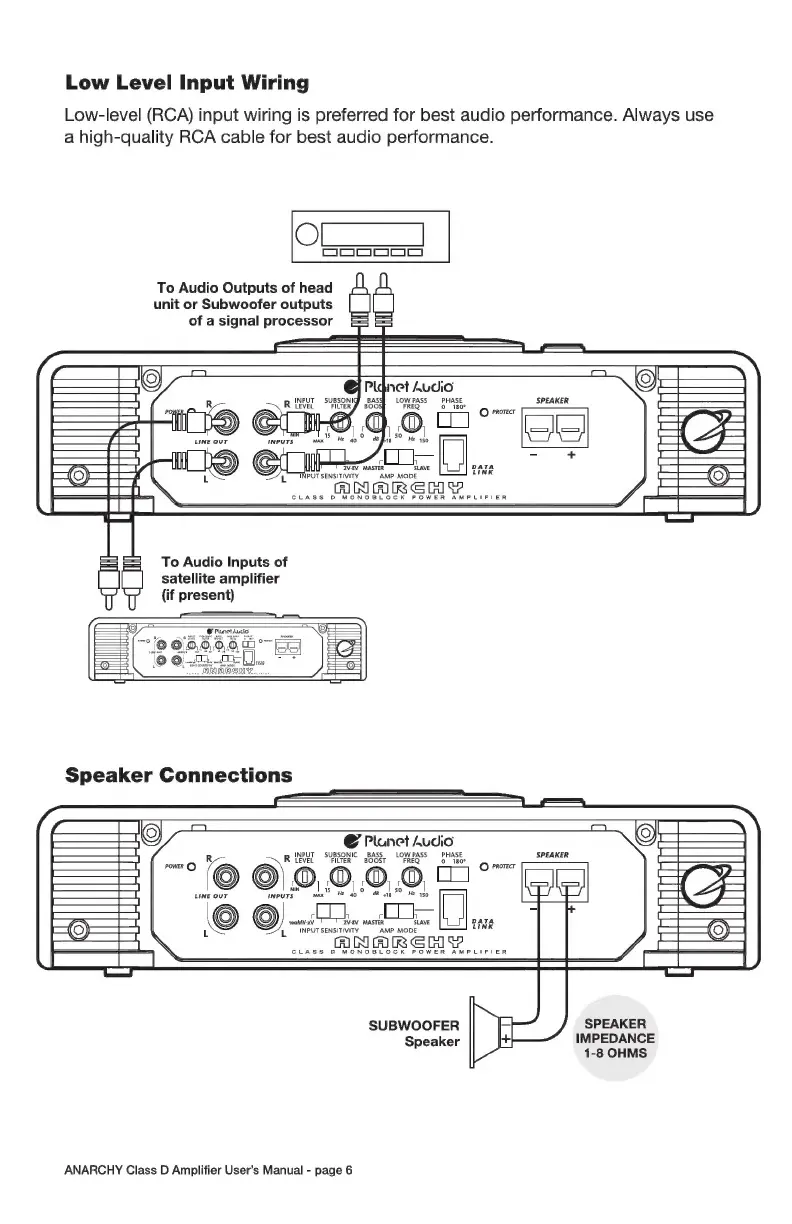

Low Level Input Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Always use
a high-quality RCA cable for best audio performance.
To Audio Outputs of head
unit or Subwoofer outputs
of a signal processor
INPUT SUBSONIQ Basg
LOWPASS PHASE SPEAKER
R LEVEL FREQ o
80°
L AMP MODE
ANAR ES
CLASS D MONOBLOCK POWER AMPLIFIER
To Audio Inputs of
satellite amplifier
(if present)
@ Planet Audio
INPUT SUBSONIC BASS LOWPASS PHASE SPEAKER
R LEVEL “FILTER BOOST FREQ
o 180°
INPUT SENSITIVITY AMP MODE
AREY
CLASS D MONOBLOCK POWER AMPLIFIER
SUBWOOFER SPEAKER
Speaker IMPEDANCE
1-8 OHMS
ANARCHY Class D Amplifier User’s Manual - page 6
