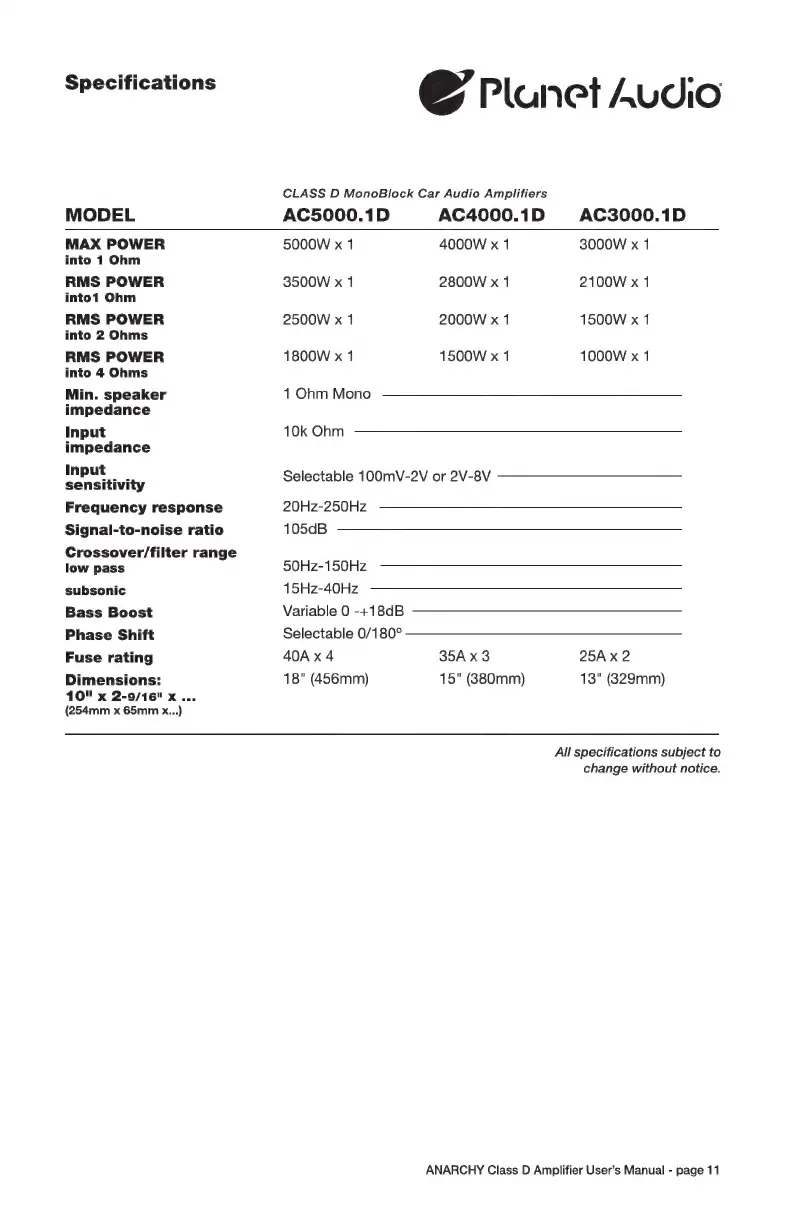

Specifications PL t /. Ji .
QNET AUOIO
CLASS D MonoBlock Car Audio Amplifiers
MODEL AC5000.1D AC4000.1D AC3000.1D
MAX POWER 5000W x 1 4000W x 1 3000W x 1
into 1 Ohm
RMS POWER 3500W x 1 2800W x 1 2100W x 1
into1 Ohm
RMS POWER 2500W x 1 2000W x 1 1500W x 1
into 2 Ohms
RMS POWER 1800W x 1 1500W x 1 1000W x 1
into 4 Ohms
Min. speaker 1 Ohm Mono
impedance
Input 10k Ohm
impedance
Input T À
sensitivity Selectable 100mV-2V or 2V-8V
Frequency response 20Hz-250Hz
Signal-to-noise ratio 105dB
Crossover/filter range
low pass 50Hz-150Hz
subsonic 15Hz-40Hz
Bass Boost Variable 0 -+18dB
Phase Shift Selectable 0/180°
Fuse rating 40A x 4 35A x 3 25A x 2
Dimensions: 18" (456mm) 15" (380mm) 13" (329mm)
10" x 2-9/16" x ...
(254mm x 65mm x...)
All specifications subject to
change without notice.
ANARCHY Class D Amplifier User's Manual - page 11
