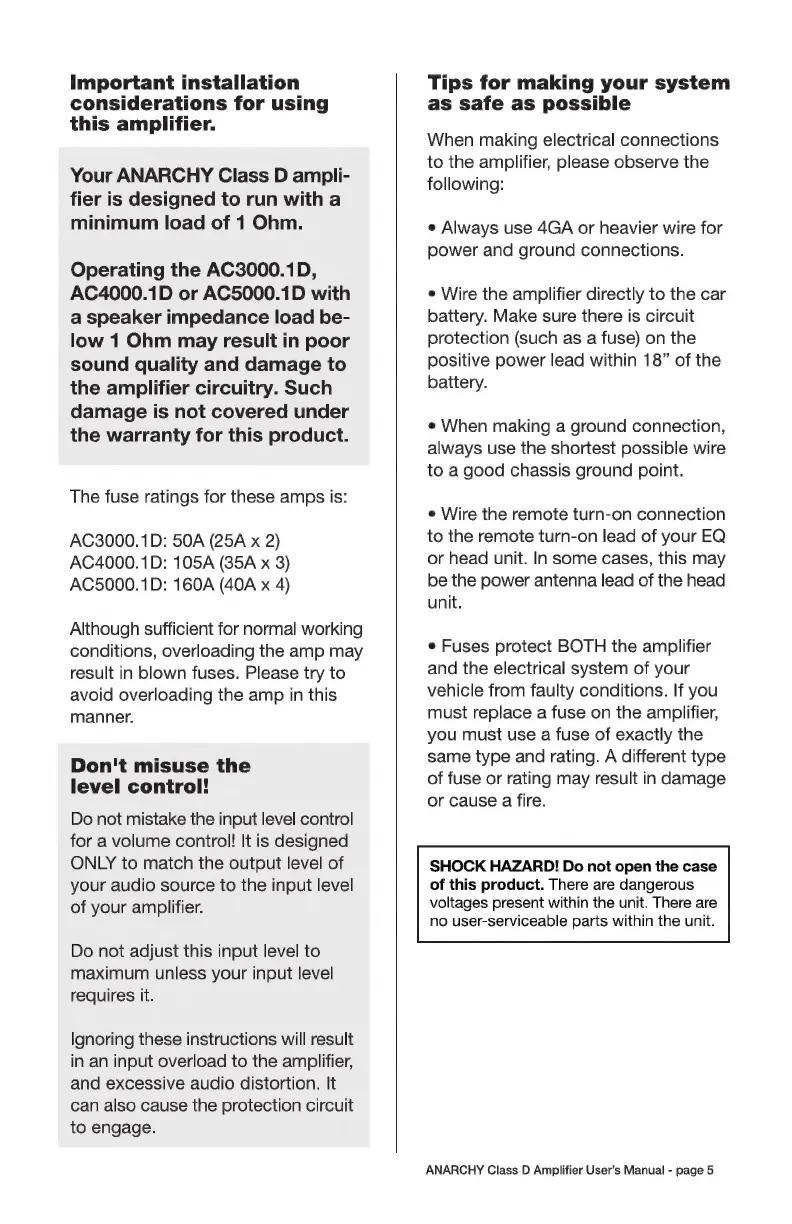

Important
installation
considerations
for
using
this
amplifier.
Your
ANARCHY
Class
D
ampli-
fier
is
designed
to
run
with
a
minimum
load
of
1
Ohm.
Operating
the
AC3000.1D,
AC4000.1D
or
AC5000.1D
with
a
speaker
impedance
load
be-
low
1
Ohm
may
result
in
poor
sound
quality
and
damage
to
the
amplifier
circuitry.
Such
damage
is
not
covered
under
the
warranty
for
this
product.
The
fuse
ratings
for
these
amps
is:
AC3000.1D:
50A
(25A
x
2)
AC4000.1D:
105A
(35A
x
3)
AC5000.1D:
160A
(40A
x
4)
Although
sufficient
for
normal
working
conditions,
overloading
the
amp
may
result
in
blown
fuses.
Please
try
to
avoid
overloading
the
amp
in
this
manner.
Don't
misuse
the
level
control!
Do
not
mistake
the
input
level
control
for
a
volume
control!
It
is
designed
ONLY
to
match
the
output
level
of
your
audio
source
to
the
input
level
of
your
amplifier.
Do
not
adjust
this
input
level
to
maximum
unless
your
input
level
requires
it.
Ignoring
these
instructions
will
result
in
an
input
overload
to
the
amplifier,
and
excessive
audio
distortion.
It
can
also
cause
the
protection
circuit
to
engage.
Tips
for
making
your
system
as
safe
as
possible
When
making
electrical
connections
to
the
amplifier,
please
observe
the
following:
e
Always
use
4GA
or
heavier
wire
for
power
and
ground
connections.
e
Wire
the
amplifier
directly
to
the
car
battery.
Make
sure
there
is
circuit
protection
(such
as
a
fuse)
on
the
positive
power
lead
within
18”
of
the
battery.
e
When
making
a
ground
connection,
always
use
the
shortest
possible
wire
to
a
good
chassis
ground
point.
e
Wire
the
remote
turn-on
connection
to
the
remote
turn-on
lead
of
your
EQ
or
head
unit.
In
some
cases,
this
may
be
the
power
antenna
lead
of
the
head
unit.
e
Fuses
protect
BOTH
the
amplifier
and
the
electrical
system
of
your
vehicle
from
faulty
conditions.
If
you
must
replace
a
fuse
on
the
amplifier,
you
must
use
a
fuse
of
exactly
the
same
type
and
rating.
A
different
type
of
fuse
or
rating
may
result
in
damage
or
cause
a
fire.
SHOCK
HAZARD!
Do
not
open
the
case
of
this
product.
There
are
dangerous
voltages
present
within
the
unit.
There
are
no
user-serviceable
parts
within
the
unit.
ANARCHY
Class
D
Amplifier
User’s
Manual
-
page
5
