INSTALLATION

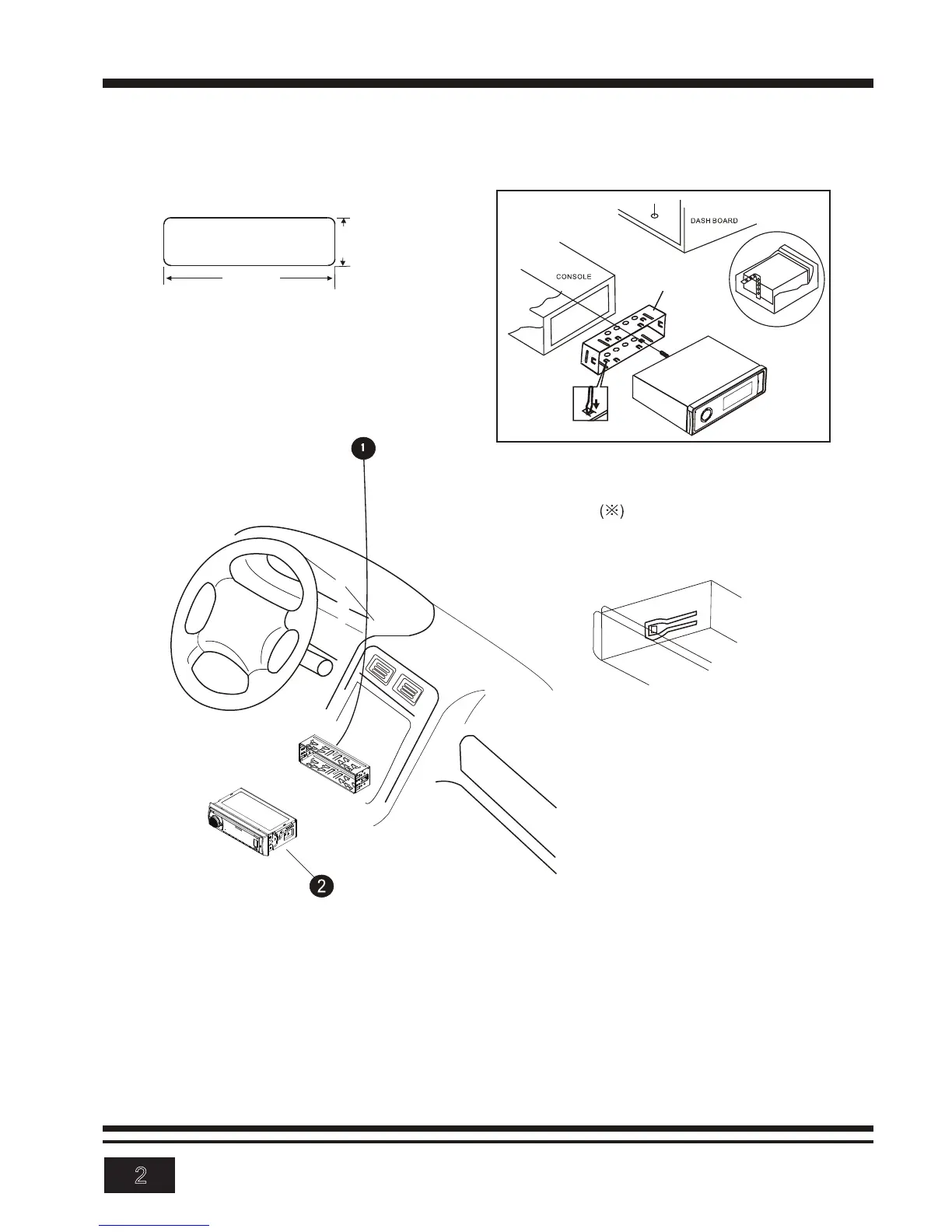

Installation Procedures
Installation Opening
First complete the electrical connections and then check for correctness.
This unit can be installed in any dashboard
Having an opening as shown above .
Insert mounting collar into the dashboard and bend
the mounting tabs out with a screwdriver.
Make sure that lock lever is flush with the mounting
collar( not projecting outward).
Secure the rear of the unit.
After fixing mounting bolt and power connector, fix the rear of the
unit to the car body by bubber cushion.
2.05 inch
7.20 inch
MOUNTING SLEEVE
