Planet Audio P375MB - Wiring Connections; Wiring Diagram and Cautions

INSTALLATION(CONT.)
3
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Wiring Connections

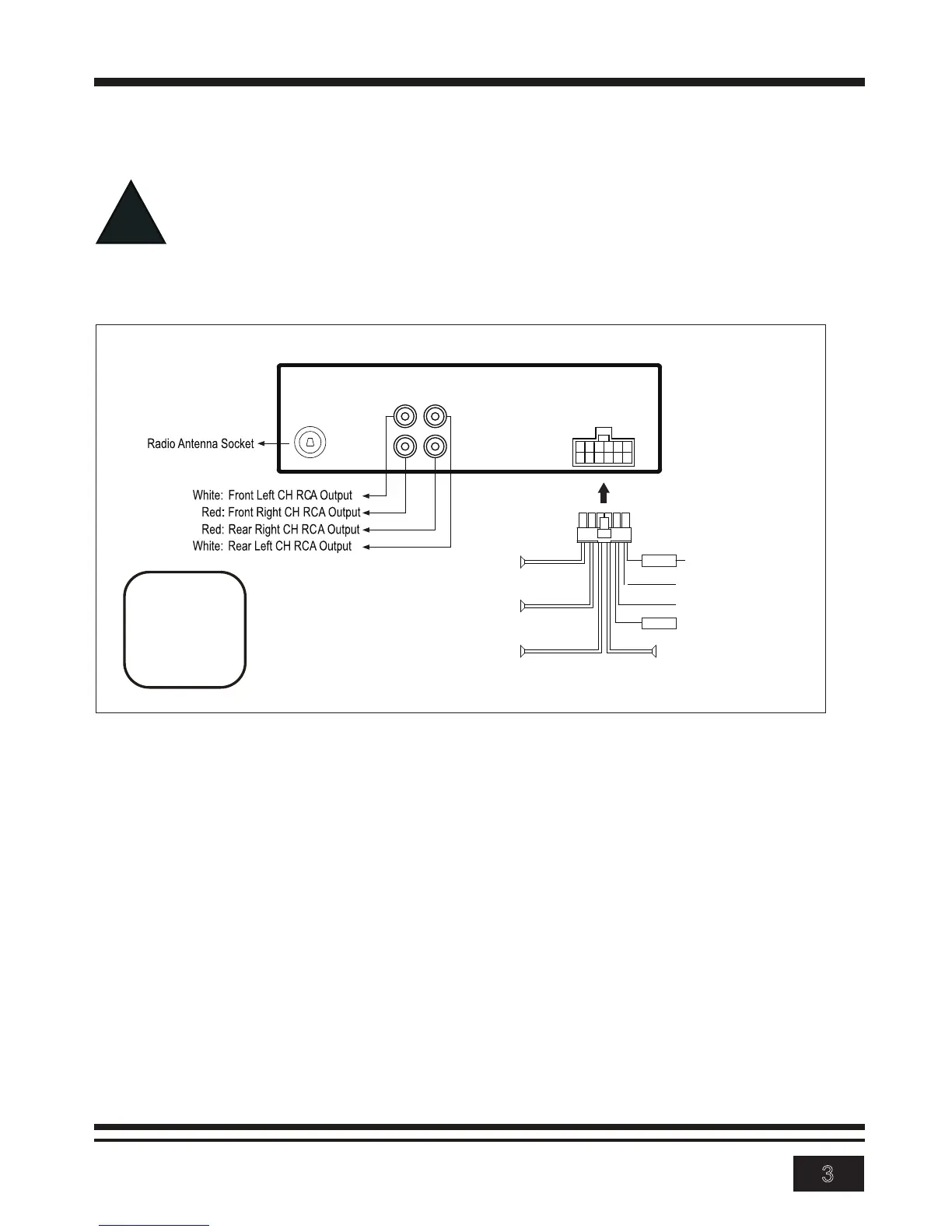

WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
!
Rear Right Speaker
Purple +
Purple/Black -
Gray +
Gray/Black -
Front Right Speaker
White +
White/Black -
Front Left Speaker
Rear Left Speaker
Green +
Green/Black -
Power B+ (Yellow)
GND (Black)
Fuse
15A
REM (Blue)
ACC (Red)
Fuse
0.5A
