Planet Audio PATV65 - Suggested Mounting Methods; Surface Mount; Handlebar Mount

5
ENGLISH
To surface mount use double
sided tape or velcro.
(not included)
Use the provided handelbar
clamp kit, try the best method
for your application, securely
tighten all components.

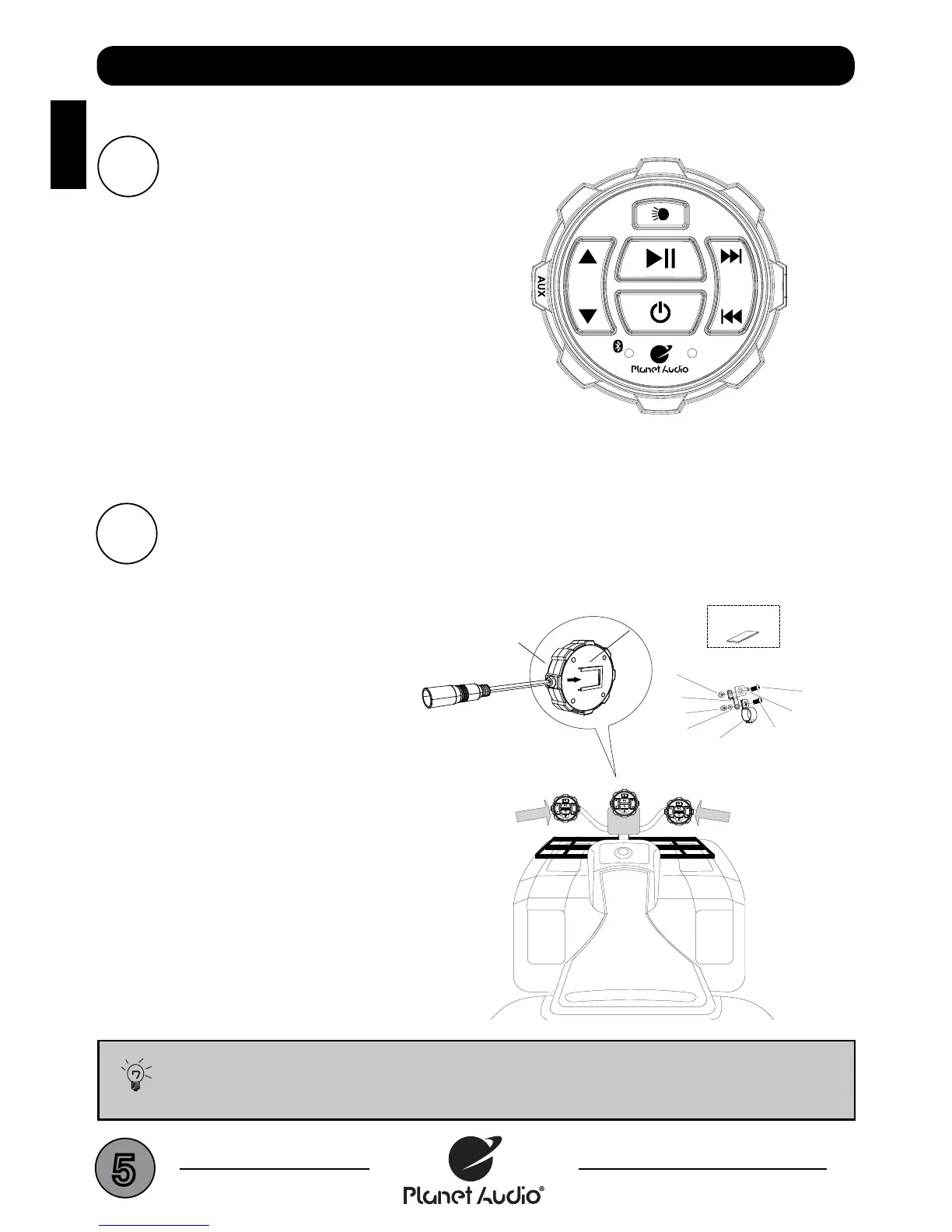

SUGGESTED MOUNTING METHODS
LEFT CENTER RIGHT
FOR ILLUSTRATION PURPOSES
YOUR VEHICLE MAY VARY
MULTI-FUNCTION
CONTROLLER
UNIT
HANDLEBAR
CLAMP
SLOT
RUBBER
SHIM
WASHER
LOCK NUT
ALLEN HEAD
LOCK NUT
ALLEN HEAD
BOLT
SNAP
BRACKET
Z-BRACKET
HANDLEBAR
CLAMP
BOLT
SURFACE MOUNT
2
1
To release the PATV65 controller from the mounting clamp, insert
a small jewellers screwdriver into the release tab.
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
The PATV65 can be mounted in two di󰀨erent congurations:
HANDLEBAR MOUNT
