Planet FGSD-1008HPS - Page 10

10
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or notebook
computer and to RJ45 type of serial port of the Managed PoE Switch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

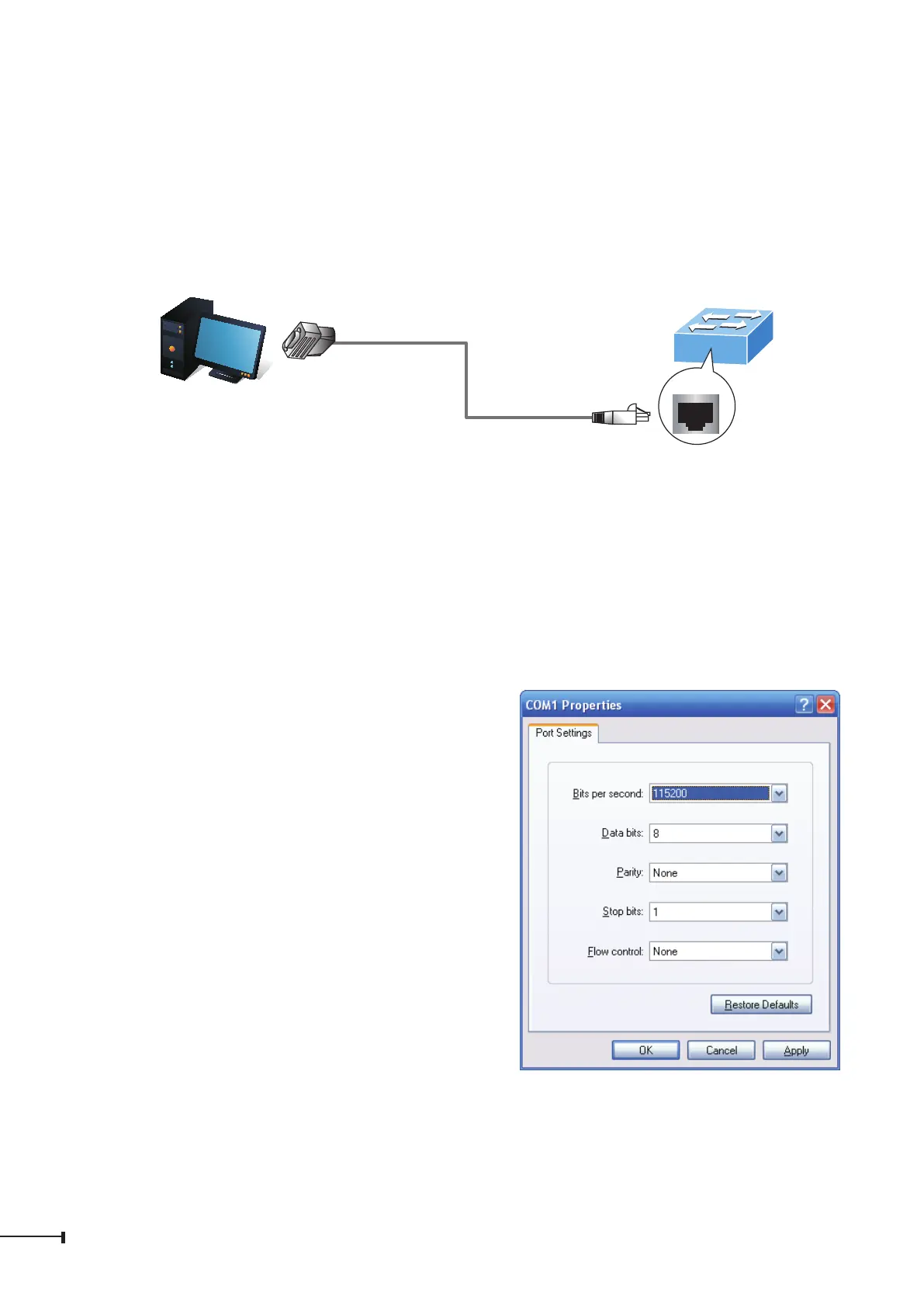

Figure 4-1: Console Connectivity
AterminalprogramisrequiredtomakethesoftwareconnectiontotheManagedPoE
Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port should be
conguredas:
 Baud: 115200
Databits:8
Parity:None
 Stop bits: 1
Flowcontrol:None
Figure 4-2: COM Port Conguration
