5.RecoveringBacktoDefaultConguration
 IP address has been changed or admin password has been forgotten –
To reset the IP address to the default IP address “192.168.0.100” or reset the
login password to default value, press the hardware-based reset button on the
front panel for about 5 seconds.After thedevice isrebooted, youcan login tothe
managementWebinterfacewithinthesamesubnetof192.168.0.xx.
1
2
3
4
5
6
7
8
9
10
Reset
8-Port 10/100TX 802.3at PoE +
2-Port Gigabit Managed Switch
FGSD-1008HPS
2 6
4 8
1SYS
PWR
5
3 7
10
9
PoE
ACTLNK
PoE-in-Use
LNK/ACT
LNK/ACT
1000
10/100
Reset Button

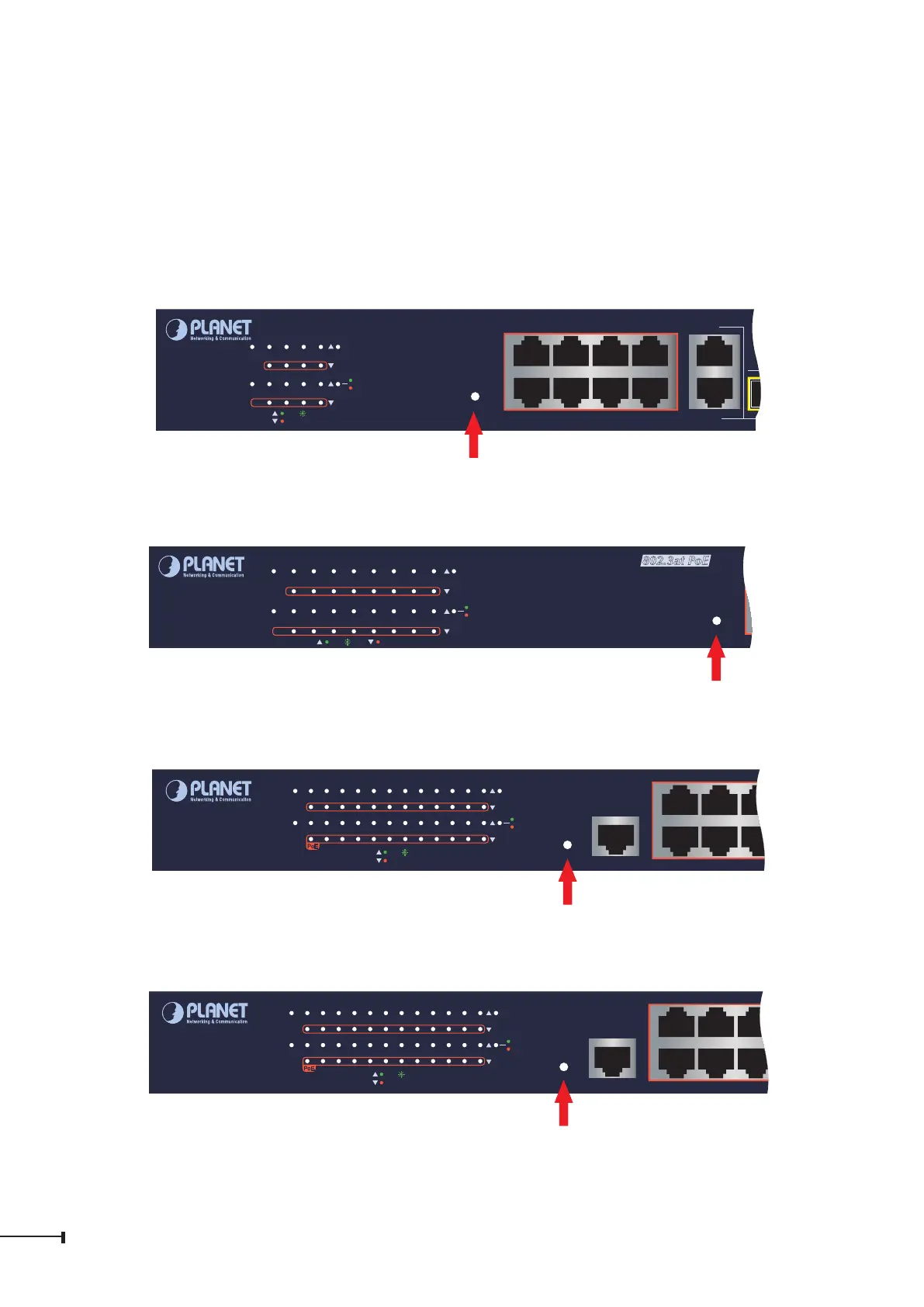

Figure 5-1: FGSD-1008HPS Reset Button
