Planet FGSD-1008HPS - Page 6

6

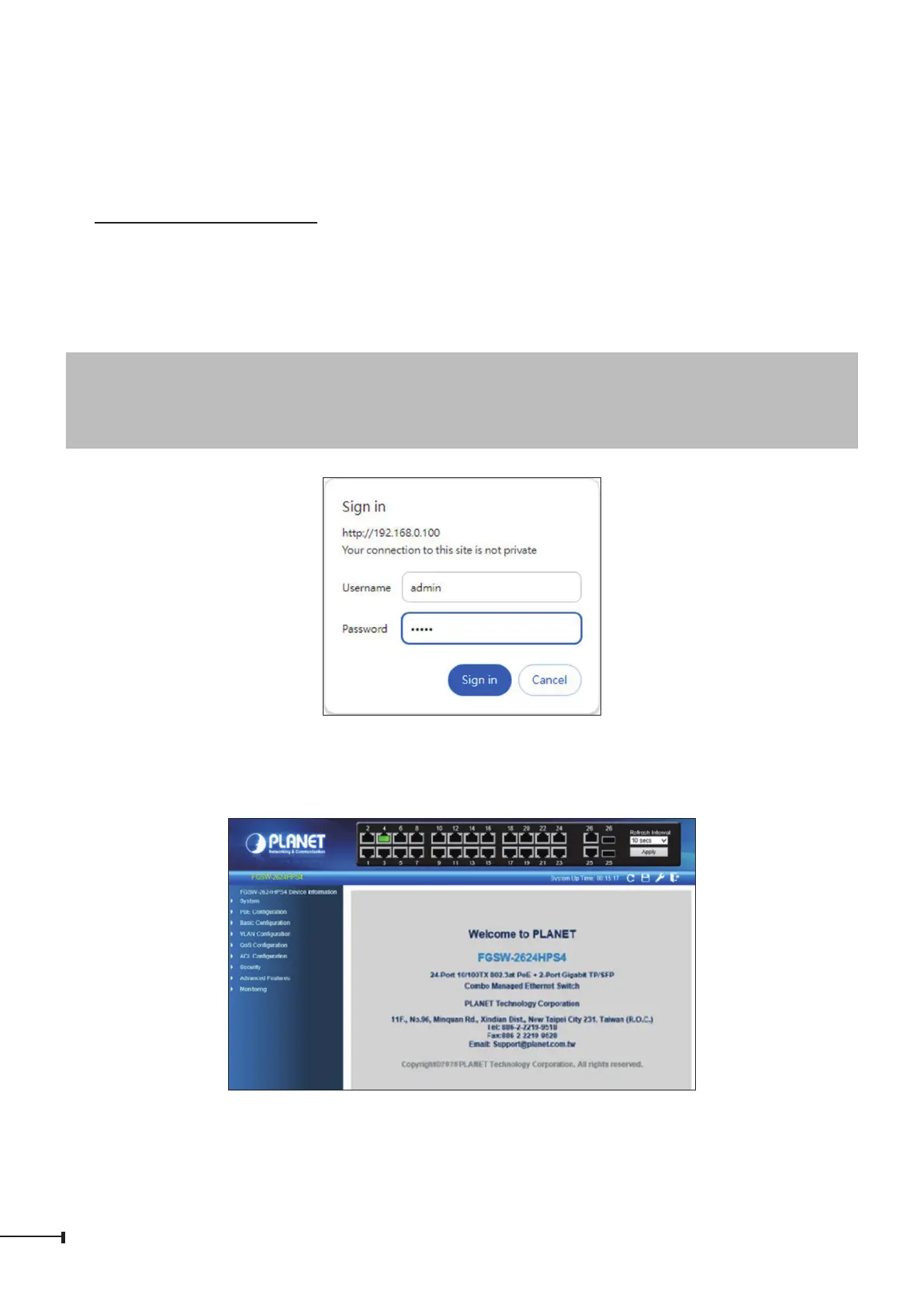

3.1 Logging in to the Managed PoE Switch
 The following web screen is based on the rmware version before April 2024.
1. Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.0.100 (the factory default IP address or the one that you have
justchangedinconsole)toaccesstheWebinterface.
2. When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure3-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
Default Password: admin
Figure 3-2: Login Screen
3. Afterenteringthepassword,themainscreenappearsasFigure3-3shows.
Figure 3-3: Web Main Screen of Managed PoE Switch
The Switch Menu on the top and left of the Web page lets you access all the
commands and statistics the Managed PoE Switch provides.
