3.2 Rack Mounting
To install the Switch in a 10-inch standard rack, follow the instructions described
below.
Step 1: Place your Gigabit Ethernet Switch on a hard at surface, with the front
panel positioned towards your front side.
Step 2: Attach a rack-mount bracket to each side of the Switch with supplied
screws attached to the package. Figure 3-1 shows how to attach brackets
to one side of the Switch.
GSD-804P
8-Port 10/100/1000Mbps
Gigabit
Ethernet
Switch with 4-Port Injector

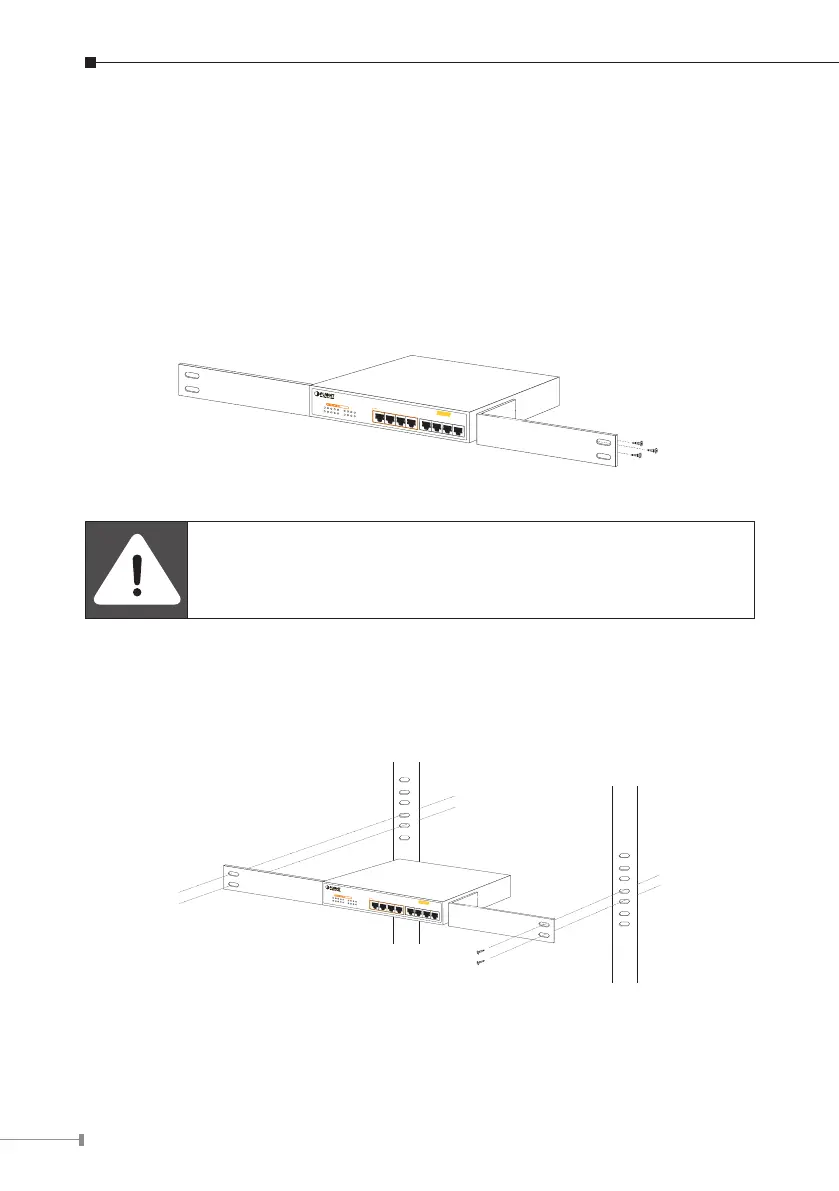

Figure 3-1: Attaching the brackets to the Switch.
You must use the screws supplied with the mounting brackets.
Damage caused to the parts by using incorrect screws would invali-
date the warranty.
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the opposite side.
Step 5: After the brackets are attached to the Switch, use suitable screws to
securely attach the brackets to the rack, as shown in Figure 3-2.
8-Port 10/100/1000Mbps
Gigabit
Ethernet
Switch with 4-Port Injector
Figure 3-2: Mounting the Switch in a Rack
Step 6: Proceeds with the steps 3 and steps 4 of session 3.1 Desktop
Installation to connect the network cabling and supply power to your
Switch.
