Appendix A Networking Connection

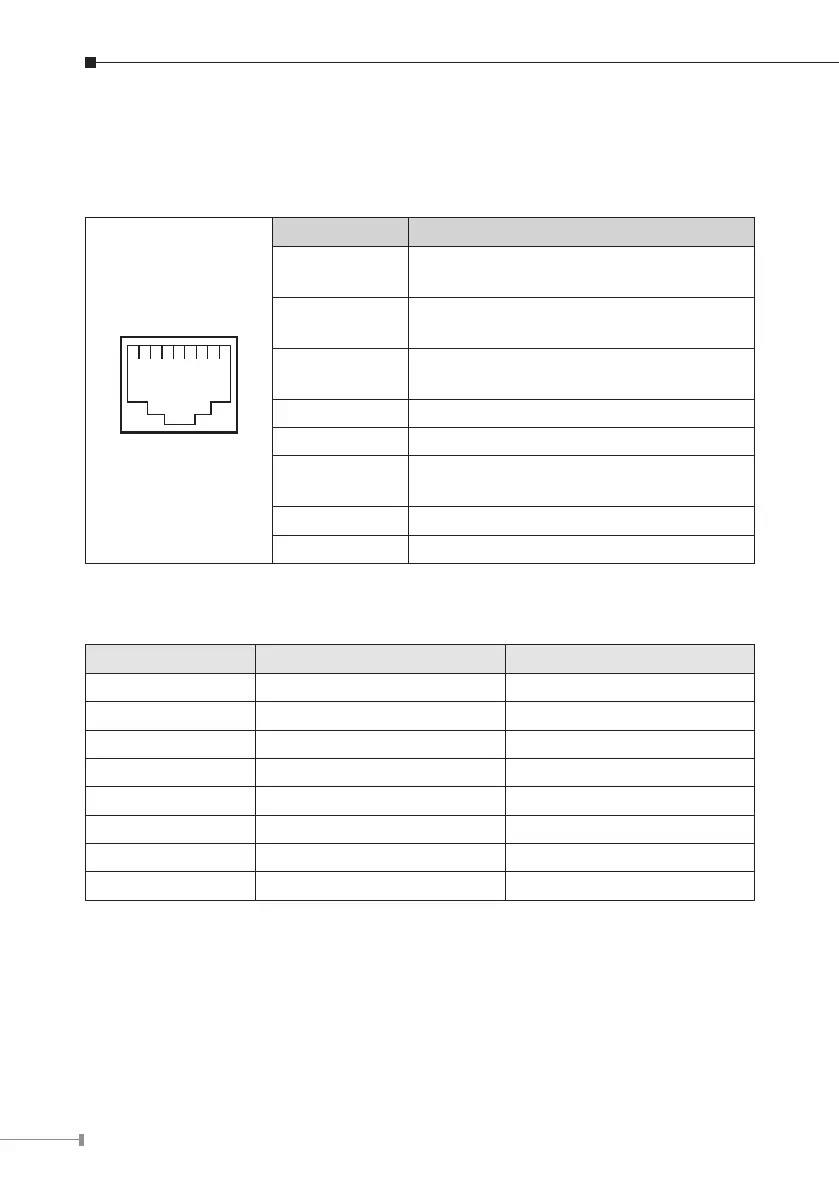

A.1 Data Out PoE Switch RJ-45 Port Pin Assignments (Port 1 to
Port-4)
1 2 3 4 5 6 7 8
PIN NO RJ-45 SIGNAL ASSIGNMENT
1
l Output Transmit Data +
l Power +
2
l Output Transmit Data –
l Power +
3
l Receive Data +
l Power -
4 -
5 -
6
l Receive Data –
l Power –
7 -
8 -
A.2 Switch's RJ-45 Pin Assignments - 1000Mbps, 1000Base-T
Contact MDI MDI-X
1 BI_DA+ BI_DB+
2 BI_DA- BI_DB-
3 BI_DB+ BI_DA+
4 BI_DC+ BI_DD+
5 BI_DC- BI_DD-
6 BI_DB- BI_DA-
7 BI_DD+ BI_DC+
8 BI_DD- BI_DC-
Implicit implementation of the crossover function within a twisted-pair cable, or at
a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
