3.3.2 Department/ Workgroup PoE Switch
Providing 4-Port PoE in-line power interface, the GSD-804P can easily build a power
centrally-controlled IP phone system, IP Camera system and Wireless AP group for
the enterprise. For instance, up to 4 cameras can be installed around the corner in
the company for surveillance demands or up to 4 Wireless AP to build a wireless
roaming environment in the ofce. Without the power-socket limitation, the Switch
makes the installation of cameras or Wireless AP more easily and efciently.
GSD-804P
802.3af PoE
IP Camera
802.3af PoE
VoIP ATA
802.3af PoE VoIP Phone
LAN / PCs
10/100/1000Base-T Data
Data
Power
Data+Power
Data+Power
802.3af PoE Wireless AP
NN
PoEPoE
PoE
PoE
AC
Power Line (AC)
AC
1000Base-T UTP
PoE
1000Base-T UTP with PoE
2.4GHz 802.11n
N

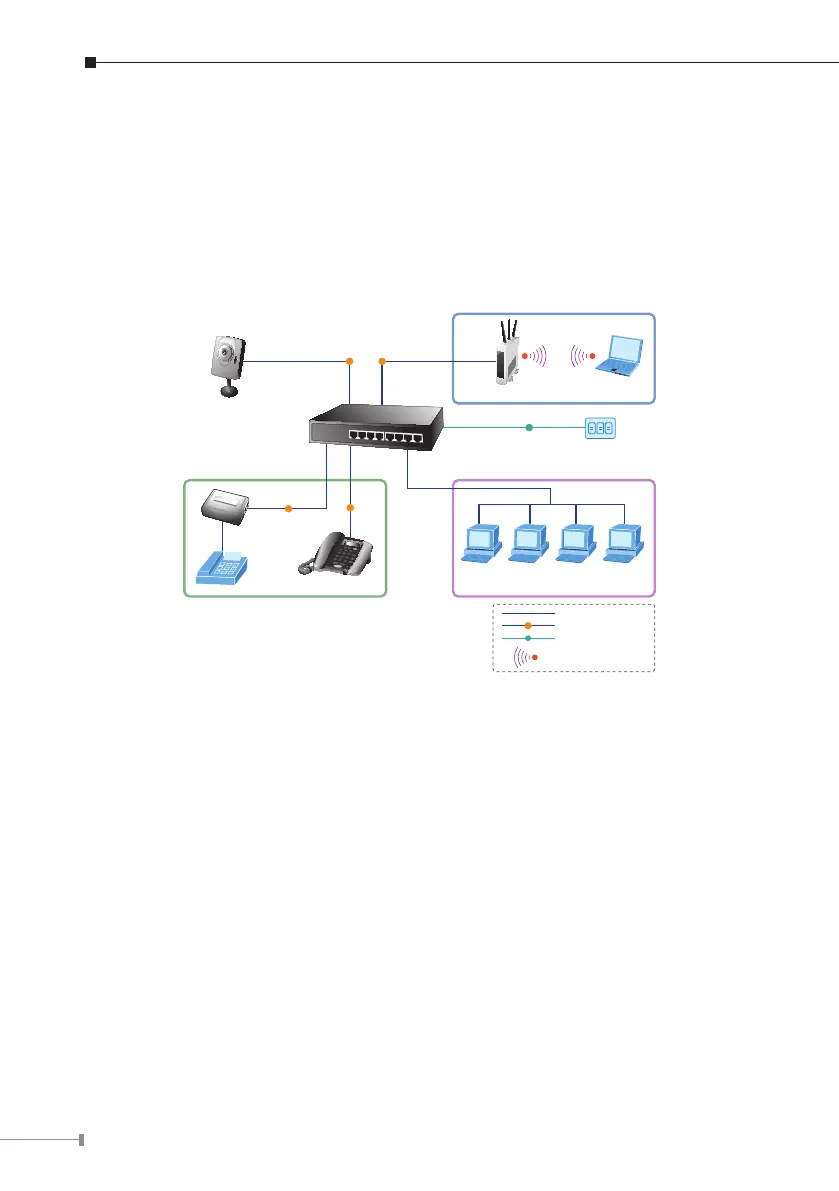

Figure 3-4: Department / workgroup PoE Switch Connection
