Planet GSD-804P User Manual

17

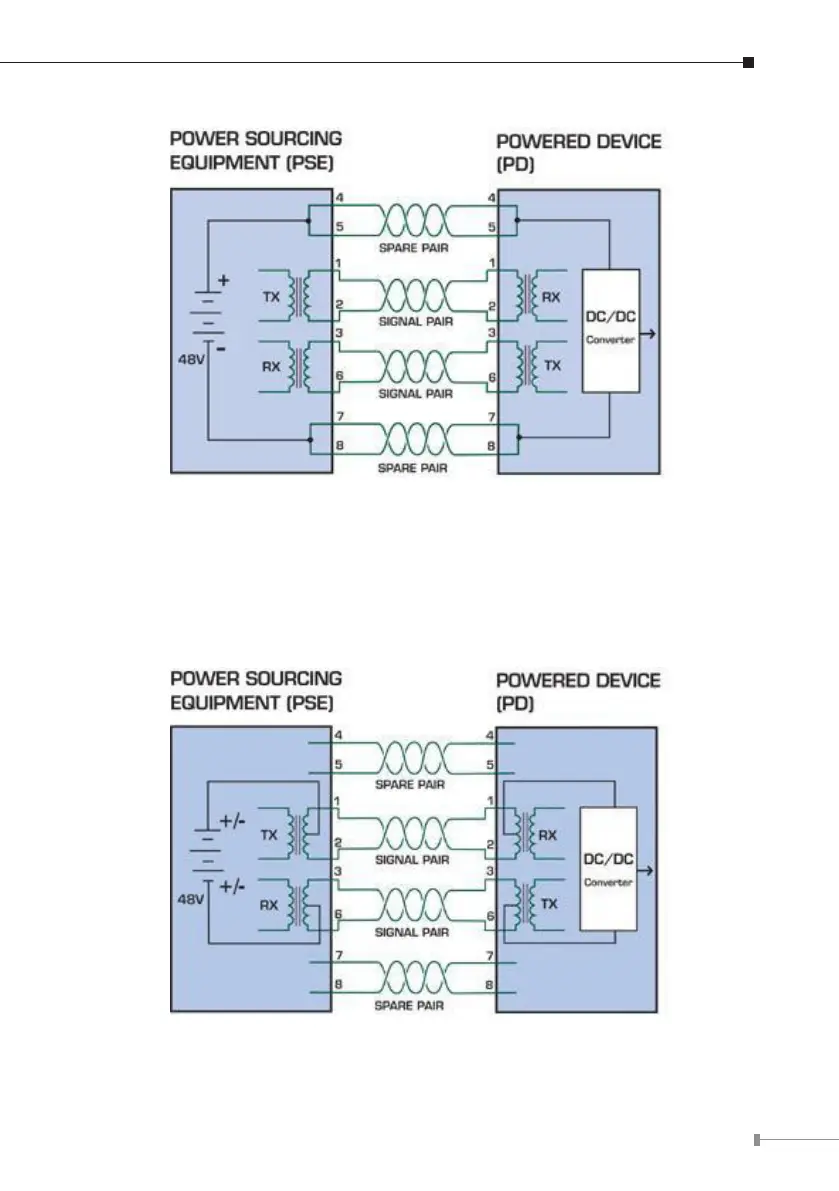

Figure 1 - Power Supplied over the Spare Pins
The data pairs are used. Since Ethernet pairs are transformer coupled at each
end, it is possible to apply DC power to the center tap of the isolation transformer
without upsetting the data transfer. In this mode of operation the pair on pins 3
and 6 and the pair on pins 1 and 2 can be of either polarity.
Figure 2 - Power Supplied over the Data Pins

Planet GSD-804P Specifications

General

Brand	Planet
Model	GSD-804P
Category	Switch
Language	English
