3. Wiring DC Power Inputs
The 6-contact terminal block connector on the panel of Industrial Managed
Switch is used for two DC redundant power inputs. Please follow the steps
below to insert the power wires.
1.Insert positive and negative DC power wires into contacts 1 and 2 for DC
POWER1,or5and6forDCPOWER2.
DI/DO
FaultR.O.
Ring
AC
DC 2
DC 1
DC POWER
ON
Fault DC 2DC 1
OFF
DC Input Range:
24-60V , 1.7A max.
GNDGNDDO 1DO 0DI 1DI 0
Max. fault loading: 24V, 1A

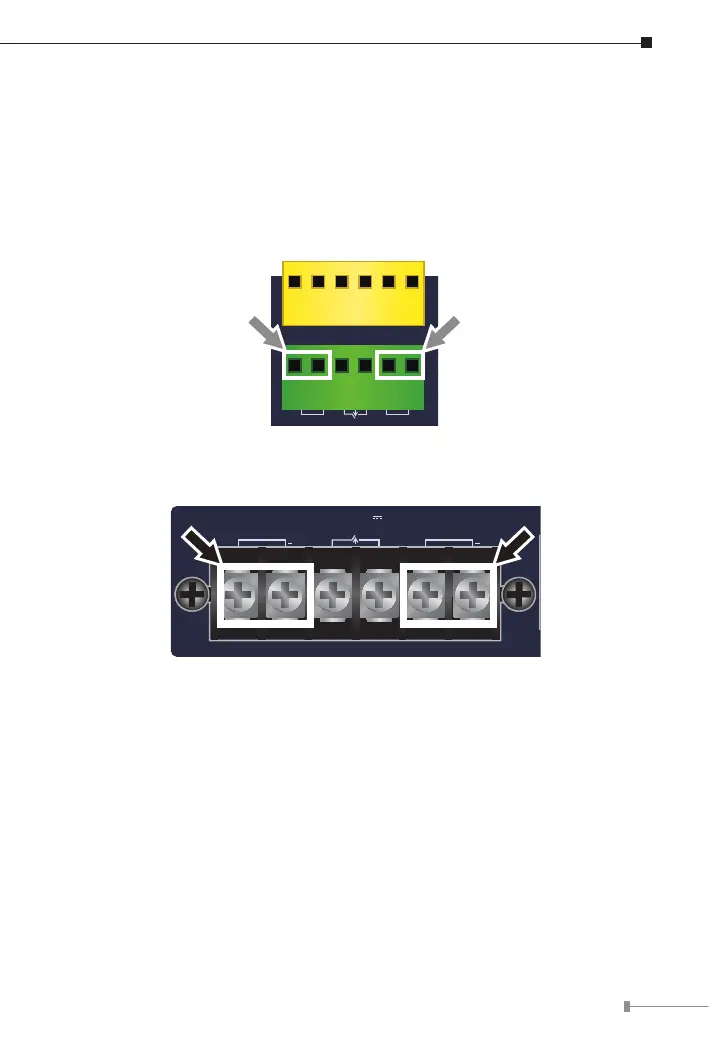

Figure 3-1: 6-contact terminal block connector of
IGS-6325-20T4C4X and IGS-6325-20S4C4X
+
FaultDC 1 DC 2
+
DC Input: 48-56V , 11A
Figure 3-2: 6-contact barrier terminal block of
IGS-6325-24P4X, IGS-6325-24P4S, IGS-6325-4UP4X
