4.3 Industrial PoE+ Injector Upper Panel
The upper panel of the Industrial PoE+ Injector consists of one
terminal block connector within two DC/AC power inputs. Figure 1
shows the upper panel of the Industrial PoE+ Injector.
1 2 3 4 5 6

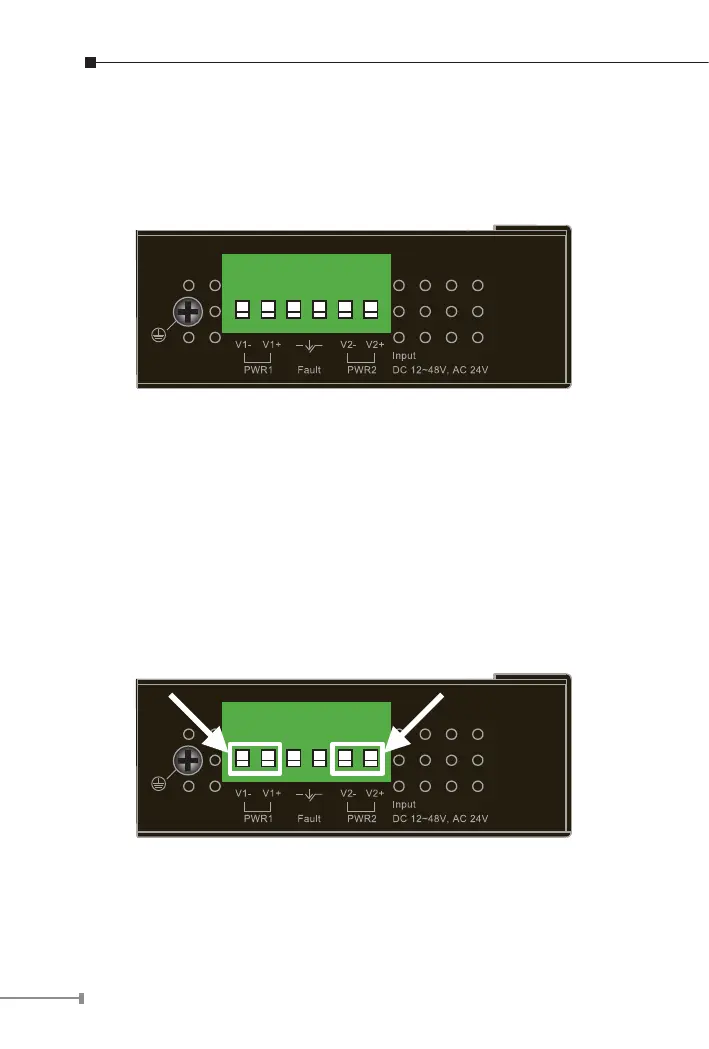

Figure 4-3: Industrial PoE+ Injector Upper Panel
4.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
PoE+ Injector is used for two DC/AC redundant power inputs. Please
follow the steps below to insert the power wire.
1. Insert the positive and negative DC power wires or neutral/Line AC
power wires into Contacts 1 and 2 for Power 1, or 5 and 6 for Power
2.
1 2 3 4 5 6
Figure 4-4: Power Input Pins
