5. Mounting Installation
This section describes how to install the Industrial Equipment and make
connections to it. Please read the following topics and perform the
procedures in the order being presented.
Note
In the installation steps below, this Manual uses the
IGS-801 (PLANET 8-port Industrial Gigabit Switch) as an
example. However, the steps for PLANET industrial slim
switch, industrial media/serial converter and Industrial
PoE equipment are similar.
5.1 DIN-rail Mounting
The DIN rail is already screwed on the industrial device. Please refer to
thefollowing guresforhangingthedevice:
Step 1: PlacetheupperDIN-railbracketintothetrackrst.
1
2

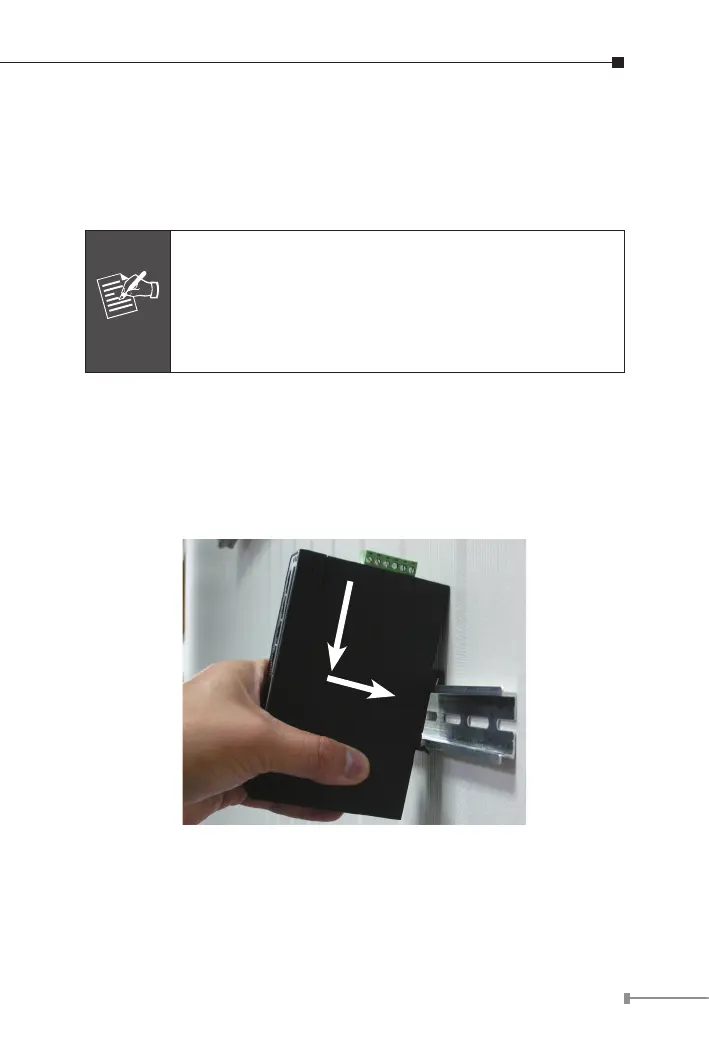

Figure 5-1: DIN-rail mounting
