11
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
1 2 3 4 5 6
Power 1 Fault Power 2
- + - +

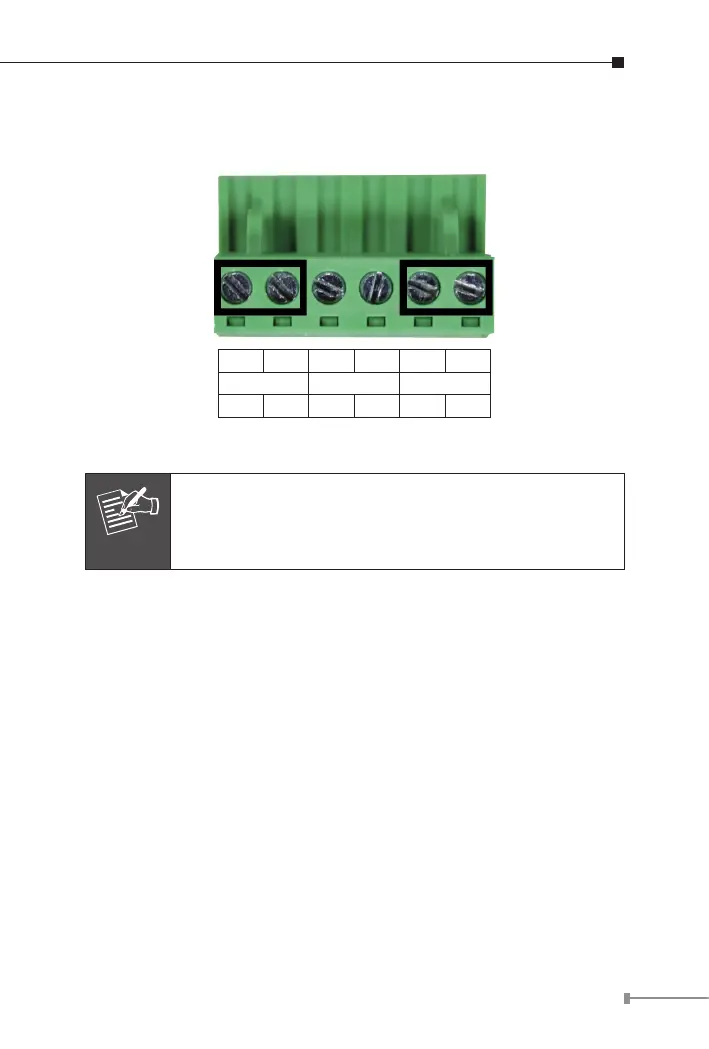

Figure 4-5: PWR1 & PWR2 Pin of Terminal Block
The wire gauge for the terminal block should be in the
range of 12 to 24 AWG.
4.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
Industrial PoE+ Injector will detect the fault status of the power failure
and then forms an open circuit. The following illustration shows an
application example for wiring the fault alarm contacts.
