12
Insert the wires into the fault alarm

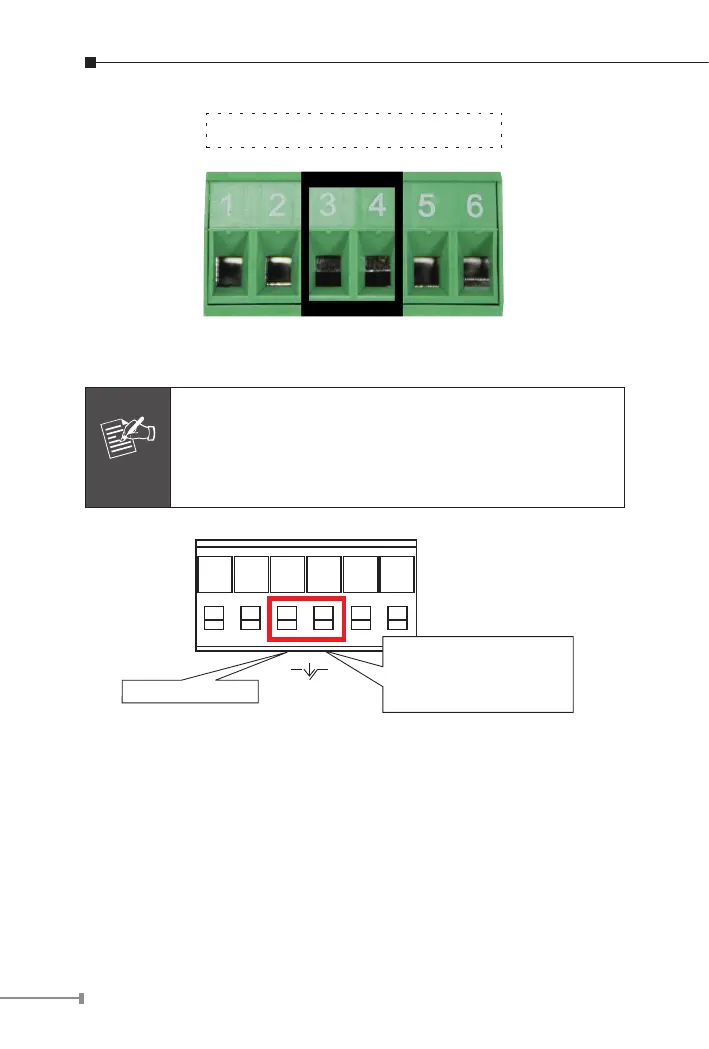

Figure 4-6: Fault Pin of Terminal Block
Note
1. The wire gauge for the terminal block should be in
the range of 12 to 24 AWG.
2. Alarm relay circuit accepts up to a maximum of 30V,
3A currents.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
Figure 4-7: Fault Alarm Contact
