3. Hardware Introduction
3.1 Device Front Panel
The front panels of the Industrial PoE++ Injector Hubs consist of Ethernet
interfaces and LED indicators.
 Front View
P1
P2 Alarm
80W
160W
240W
PoE
Usage
1
DATA
2
3
4
IPOE-470
DATA & PWR
Legacy
ON
BT
OFF
PoE
Mode
DIPON
1
2
3
4
P1
P2 Alarm
80W
160W
240W
PoE
Usage
1
DATA
2
3
4
IPOE-470-12V
Legacy
ON
BT
OFF
PoE
Mode
DATA & PWR
DIPON
1
2
3
4

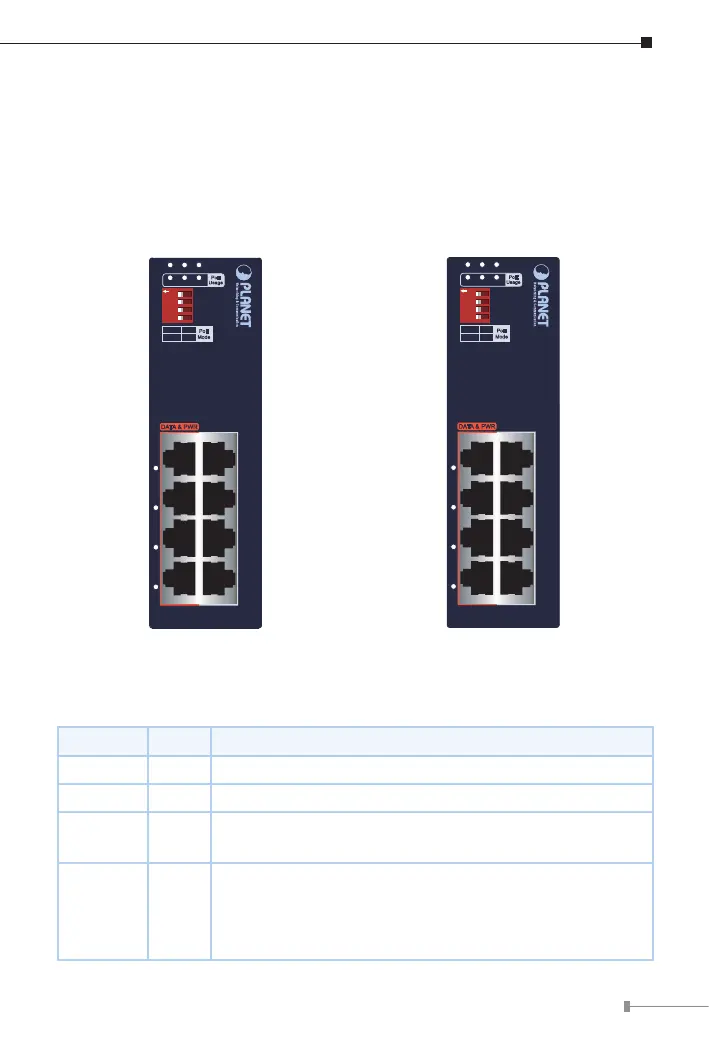

Figure 1: IPOE-470 Front View Figure 2: IPOE-470-12V Front View
 System LEDs
LED Color Function
P1 Green Lights to indicate DC power input 1 has power.
P2 Green Lights to indicate DC power input 2 has power.
Alarm Red
Lights to indicate either power 1 or power 2 has no
power.
PoE Usage Amber
80W, 160W, 240W Lights to indicate the system
consumes over 80-/160-/240-watt PoE power budget.
Blinks to indicate the system consumes less than
80-/160-/240-watt PoE power budget.
