2. Installation
2.1 Physical Dimensions
The IPOE-E174’s dimensions (W x D x H) are 32 x 87.8 x 135 mm.

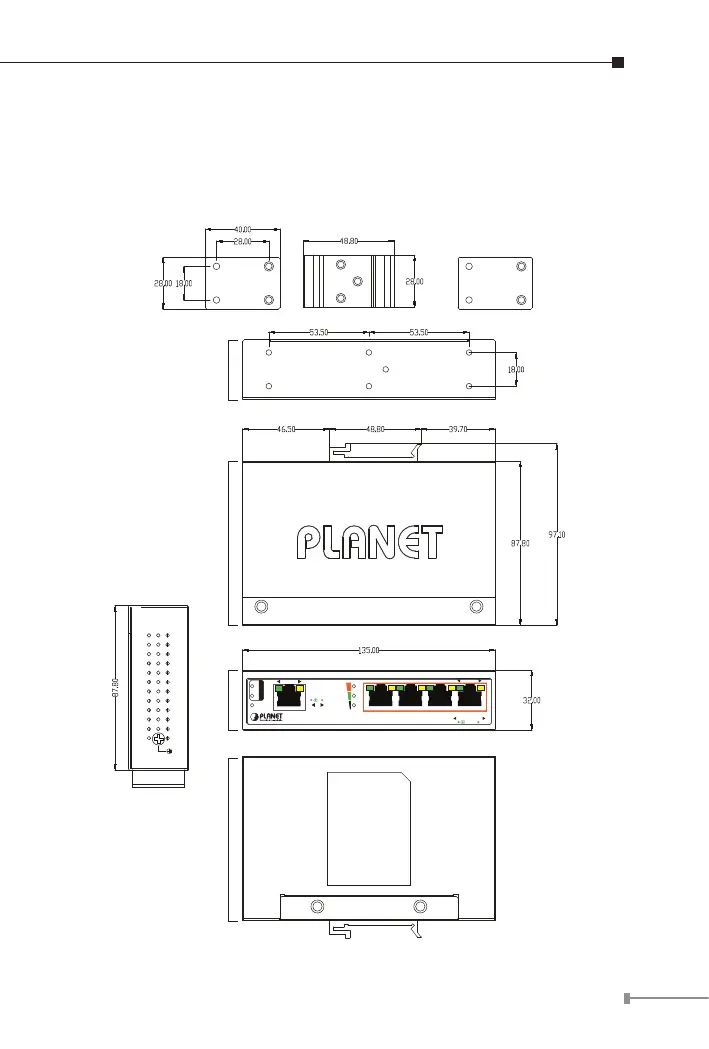

Dimensions ( unit = mm )
Top View
Side View Front View
Mounting Kit Mounting Kit
DIN-Rail Kit
Side View Rear View
ACT LNK PoE IN
PoE Power Usage
60W40W20W
PWR 30W 60W+
Industrial 4-Port PoE Extender
PoE Input
1 2 3 4
AC
T
LNK
PoE IN-Use
