1.2 Application Diagram

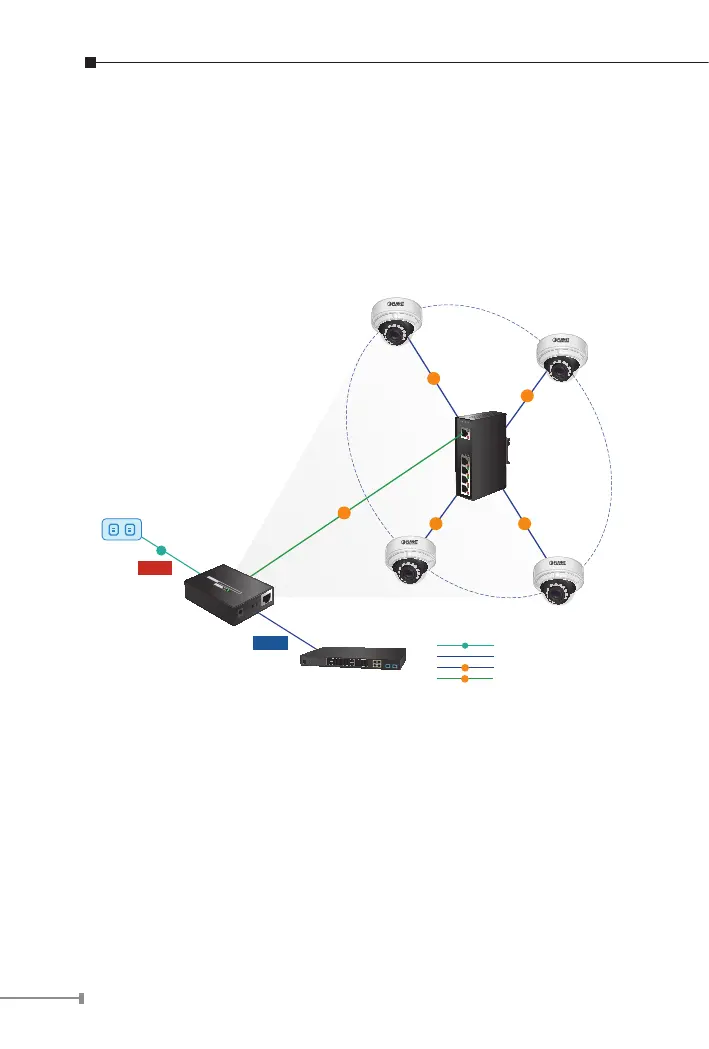

The IPOE-E174 is designed as a repeater to forward both Gigabit
Ethernet data and IEEE 802.3at PoE power, thus extending the range
of PoE installation. With just plug and play and without additional
power supply and setup, one single IPOE-E174 can increase the PoE
range to 200m and drive up four remote PoE IP cameras or wireless
access point.
Ultra PoE Injector
Power
Data
DC
100 meters
100 meters
100 meters100 meters
Power Line (DC)
DC
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE
PoE
PoE
PoE
PoE
1000BASE-T UTP with Ultra PoE
PoE
IPOE-E174
