Planet IPOE-E174 - 2.4 Connecting IPOE-E174 to Power Source Equipment (PSE)

16

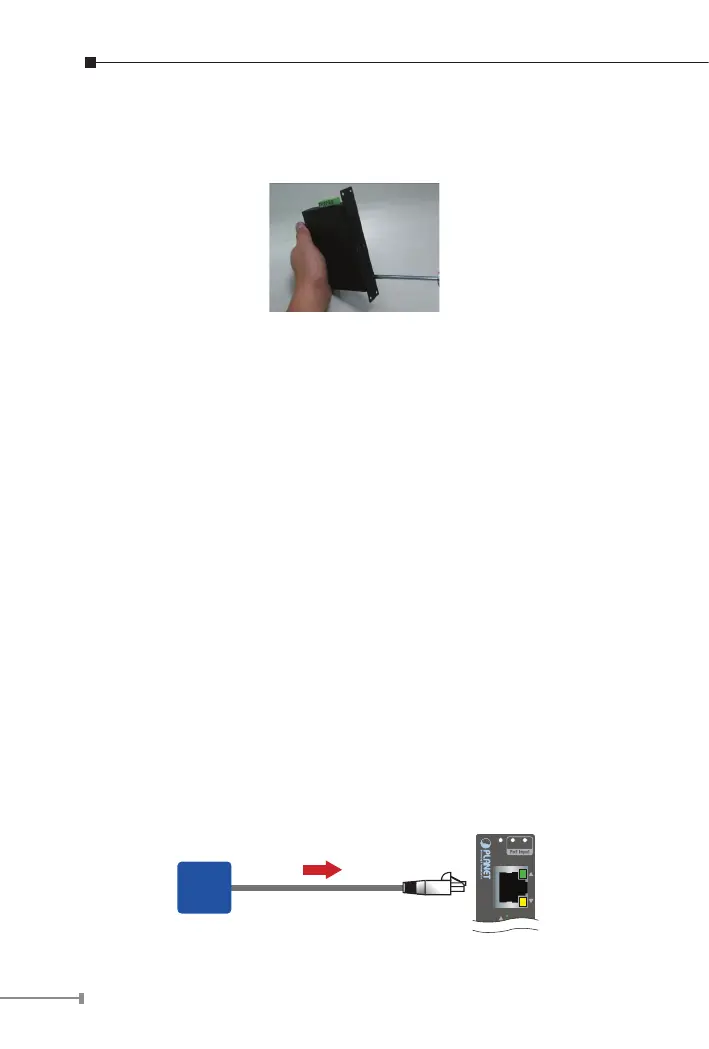

Step 2: Place the wall-mount plate on the rear panel of the Industrial
Power over Ethernet Extender.
Step 3: Use the screws to screw the wall-mount plate on the
Industrial Power over Ethernet Extender.
Step 4: Use the hook holes in the corners of the wall-mount plate to
hang the Industrial Gigabit Ethernet Switch on the wall.
Step 5: To remove the wall-mount plate, reverse the steps above.
2.4 Connecting IPOE-E174 to Power Source Equipment
(PSE)
This section describes how to install the Industrial Power over Ethernet
Extender and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
There are ve RJ45 ports in the Industrial Power over Ethernet
Extender, of which the “PoE IN” port functions as “PoE (Data and
Power) input” and the “PoE-in-Use” port on the other side functions
as “PoE (Data and Power) output”.
Step 1: Connect a standard Cat.5e/6 UTP cable from Power Source
Equipment (PSE), such as PoE Switch, PoE injector hub or
single port PoE injector, to the “PoE IN” port of the IPOE-
E174.
ACT
LNK
PWR 30W 60W+
Industrial
PoE Input
PoE
PSE
802.3bt/Ultra PoE input
