12

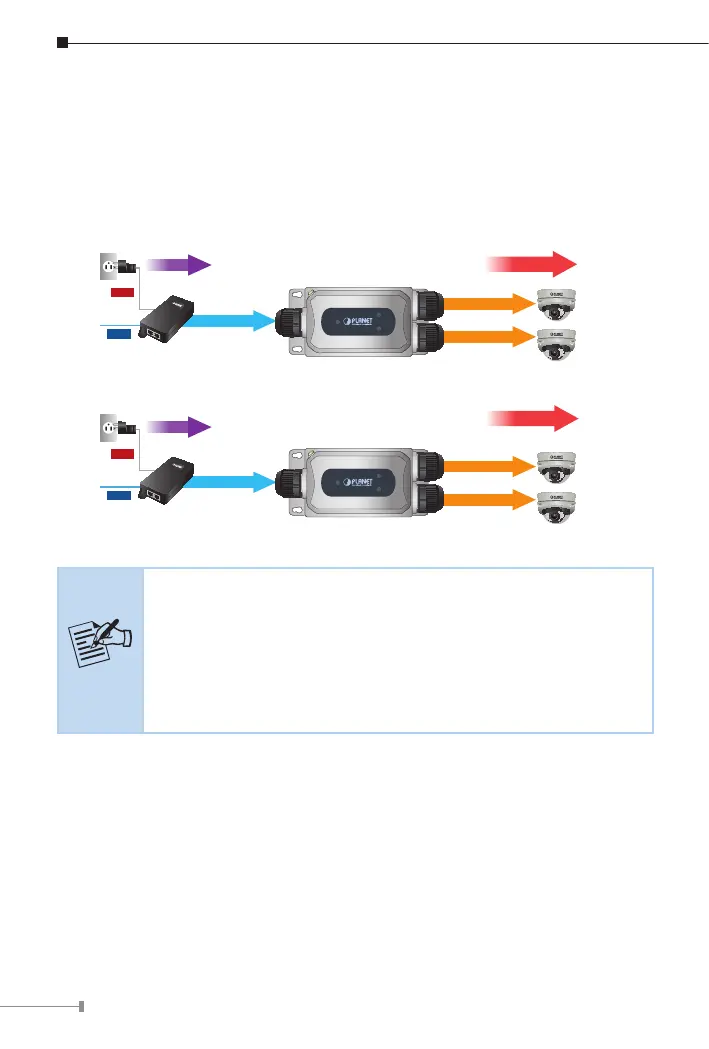

Step 2: The PoE++ Out port is also the power injector which transmits
DC voltage to the Cat5e/6 cable and transfer data and power
simultaneously between the PSE and PD.
Step 3: Once the IPOE-E302 detects the existence of an IEEE 802.3at/bt
device or Ethernet device, the LAN LED indicator will be lit steadily,
showing it is providing power.
60-95W
30W
PoE Dome IP Camera
802.3bt PoE++
802.3at PoE+
Power
Data
100m
100m
802.3bt PoE++
100m
PoE Dome IP Camera
802.3af PoE
100m
802.3af PoE
100m
50W+25W
PoE Extender
802.3bt PoE++ Injector/Switch
1 In 2 Out
802.3at PoE+
Power
Data
100m
10W+10W
802.3at PoE+ Injector/Switch
PoE Extender
1 In 2 Out
Note
1. According to IEEE 802.3at/bt standard, the IPOE-E302 will
not inject power to the cable if not connected to a standard
IEEE 802.3at/bt device.
2. DO NOT connect any non-standard PSE to PoE++ In port of
the IPOE-E302; it may damage the device permanently.
