Chapter 2
Installation
2.1 System Requirements Specifications
Model KVM-200 KVM-400
VGA Monitor 1 1
PS/2 Keyboard 1 1
Console
side
PS/2 Mouse 1 1
HDB-15 pin male to
male VGA cables
2 4
PS/2 cable male to
male for Keyboard
2 4
Computer
side
PS/2 cable male to
male for Mouse
2 4
Optional
USB-PS2 adapter is required if connect to
computer with only USB keyboard/mouse
interface.
2.2 Product Details

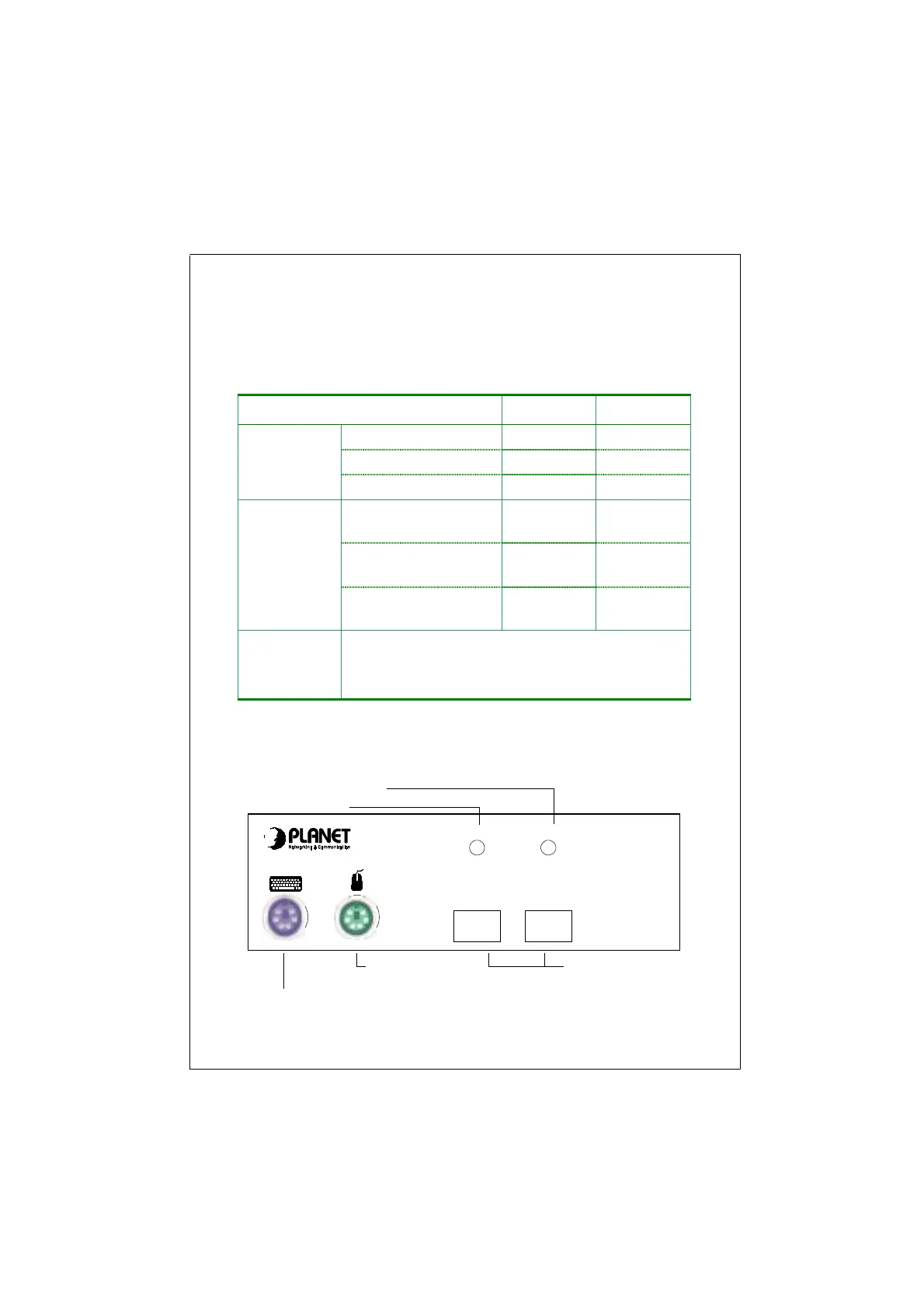

Front panel & Rear panel of KVM-200:
Computer power
on/off status
1
2
Select
Power
KVM-200
2-Port KVM Switch
Connect to mouse PC selection
Connect to keyboard
