9-Channel Network Video Recorder
NVR-915
10

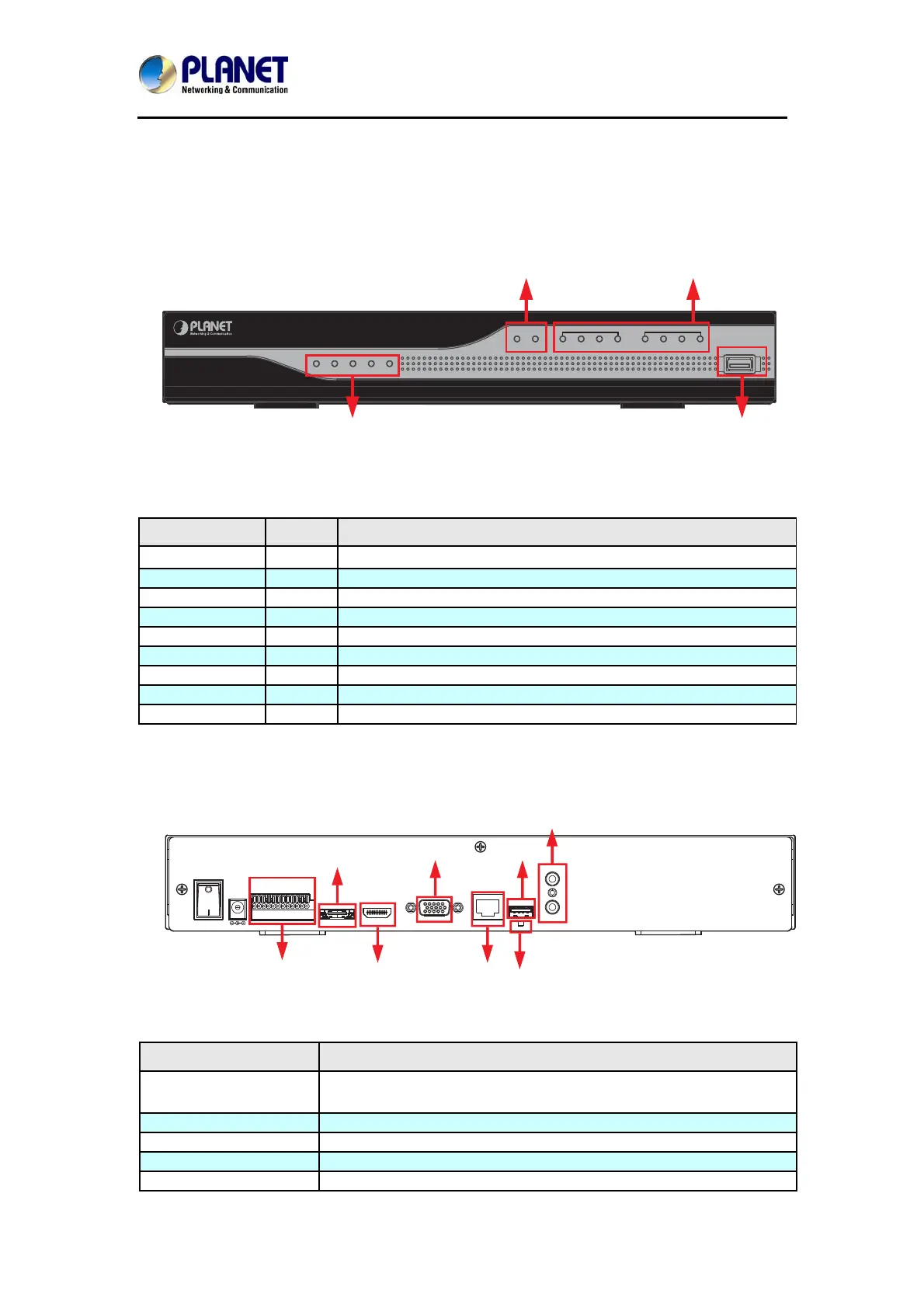

1.5 Physical Specifications
Front Panel
LEDs Color
Description
PWR Green
LED on when system is ready
HDD
Green
LED on when HDD is reading or writing
LAN Blue LED blinking when network is connected
REC Green LED on when record schedule is on
Event Green LED on when event detection schedule is on
Alarm Amber LED on when hard disk writes error
CAM Amber LED on when system has camera disconnected
Digital In (1~4) Amber LED on when digital input X is closed
Digital Out (1~4) Blue LED on when digital output X is closed
Rear Panel
Connector
Description
USB
Connect your mouse and USB flash disk for local display control and
backup
Reset Press and hold reset button to factory default
HDMI HDMI output
VGA VGA output
e-SATA External e-SATA HDD
PWR HDD LAN REC Event
Alarm CAM 1 2
Digital In
3 4 1 2 3 4
Network Video Recorder
Digital Out
USB
PWR/HDD/LAN/REC/Event Status LEDs
USB
DI/DO Status LEDsAlarm/Camera Status LEDs
PWR
eSATA
12V
D+
D
-
DI 0
DI 1
DI 2
DI 3
GND
DO 0
DO 1
DO 2
DO 3
HDMI
LAN
RESET
USB
MIC IN
AUDIO OUT
VGA
12V DC
I/O
HDMI
LAN
e-SATA
VGA USB
