Planet XGS-6320-8UP4X User Manual

5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedSwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

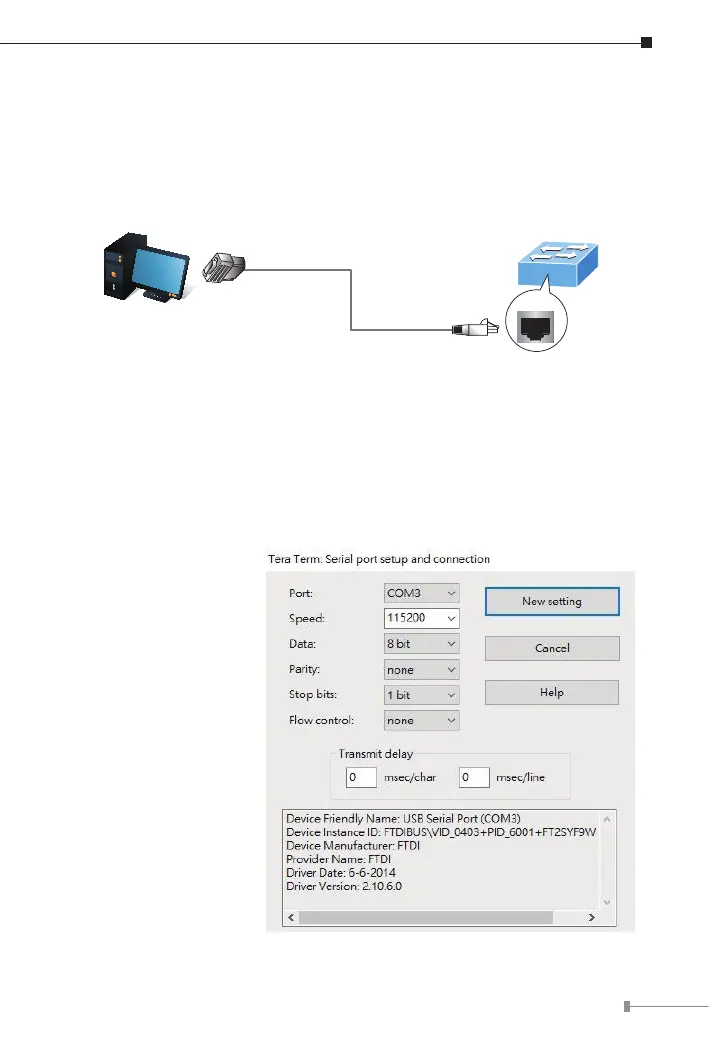

Figure 3-1: Managed Switch Console Connectivity
A terminal program is required to make the software connection to the
ManagedSwitch.
1. Run terminal program on the OS.
2.When thefollowingscreenappears,makesure thatthe COMportshould be
conguredas:
z Speed:115200
z Data:8bit
z Parity:None
z Stopbits:1bit
z Flowcontrol:None
Figure 3-2: COM Port Conguration

Planet XGS-6320-8UP4X Specifications

General

Brand	Planet
Model	XGS-6320-8UP4X
Category	Switch
Language	English
