Plantronics CS540 - Headband Assembly

8
Headband Assembly
The headset can be rotated for wearing on the left or right ear.
NOTE Before installing the headband, remove the eartip and earloop from the headset.

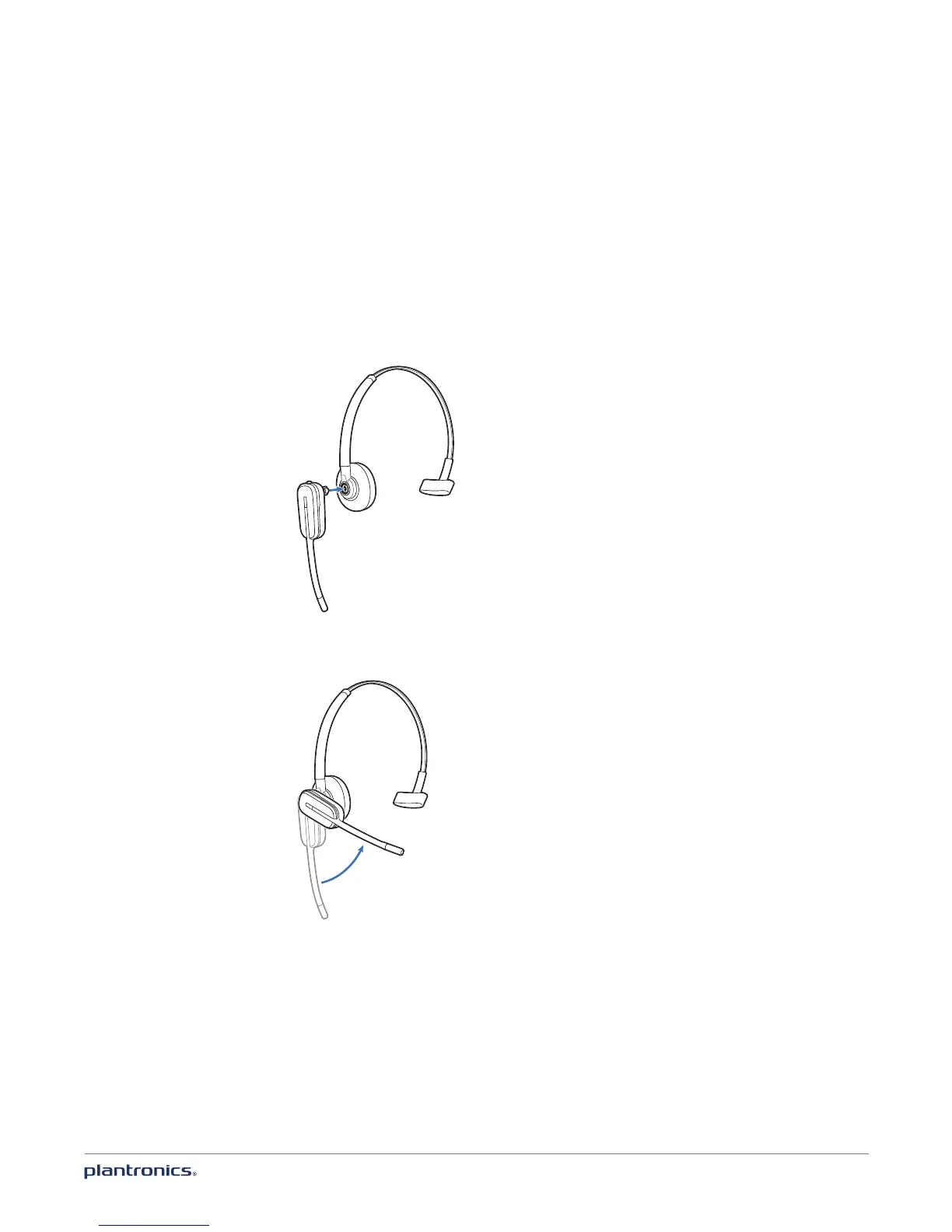

1 Hold the headband so it is aligned to receive the headset as shown and insert the headset into
the headband.
2 Rotate the headset up.
3 To optimize the position of the headset, push the headset in so the microphone is close to the
corner of your mouth.
