ASSEMBLING THE BASE SPAR

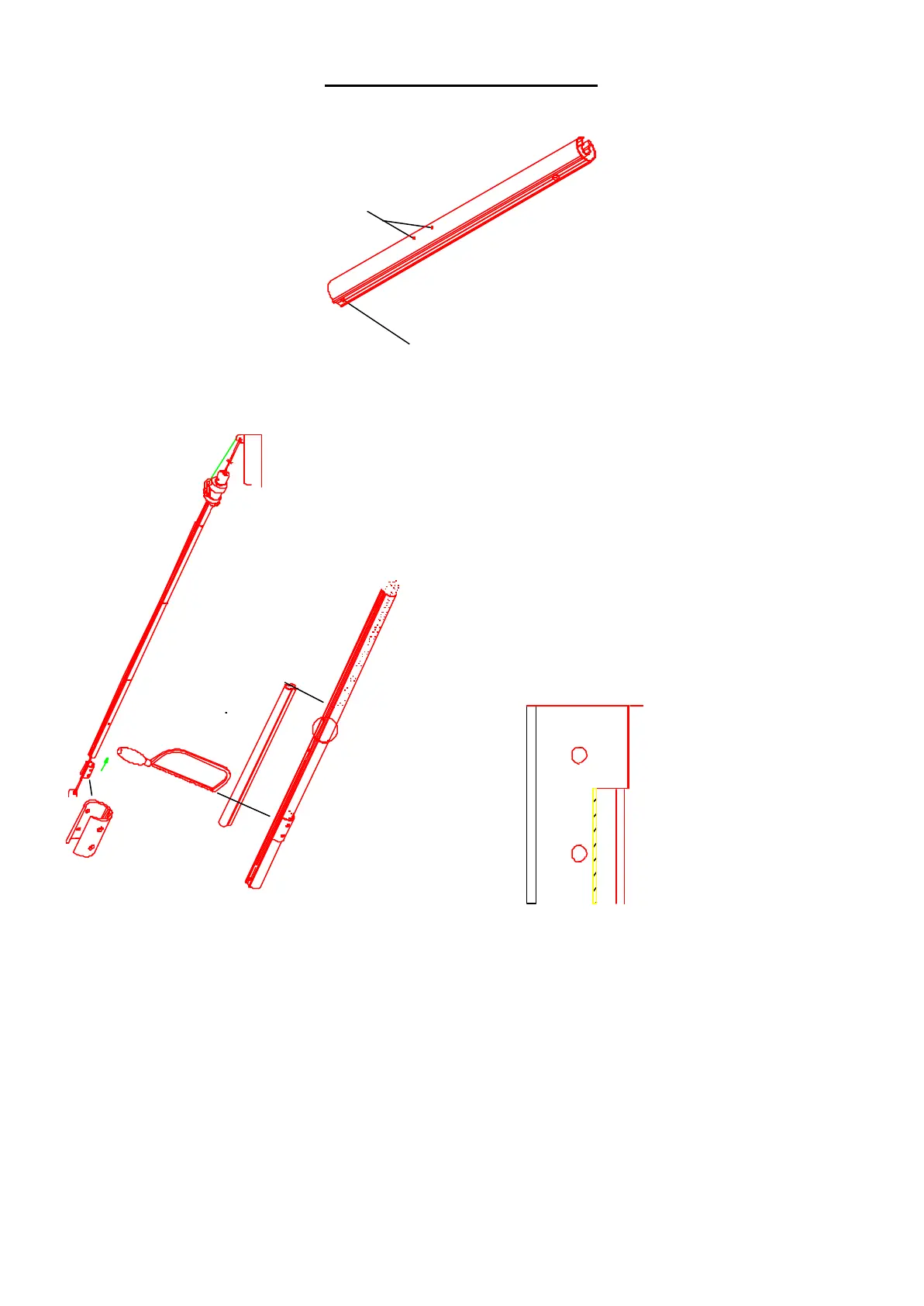

- IMPORTANT: ensure the base spar is facing the right way (see diagram below)
holes to secure
prefeeder
end to be inserted
into drum
-Cutting the PVC liner
- Slide the prefeeder into position
from the bottom of the spar until it is
in line with the holes in the spar
(IMPORTANT: ensure that the
prefeeder is the right way up)
- Insert a N°7 screw
- Position a PVC liner, mark and cut
to required length
- Remove the prefeeder and install the
cut PVC liner
position of prefeeder
