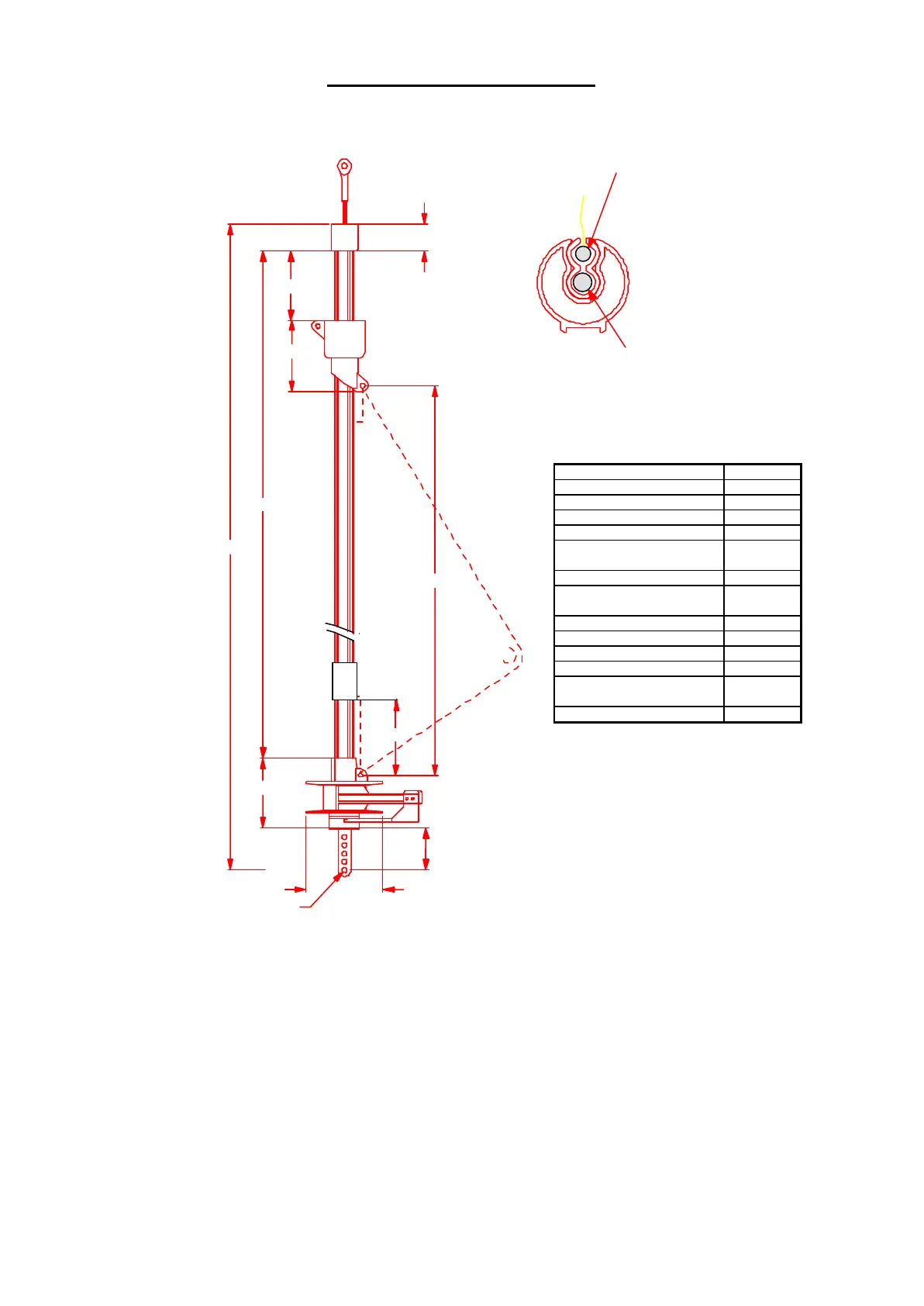

TECHNICAL SPECIFICATIONS
406-S MODEL
45
50
119.5
A
B
D
117.5
Ø 132
Ø E
C
S
Ø 6,5 mm
Ø 4 - 7 mm
450
Model 406-S
Réf. N° chainplate version 25722
Réf. N° turnbuckle version 25723
Forestay diameter (mm) 4 - 7
Luffrope diameter (mm) 6.5
Length A chainplate (m)
Length A turnbuckle (m)
6.20
6.28
Length B (m) 5.95
Length C chainplate (mm)
Length C turnbuckle (mm)
85
170
Lenth.D (m) 5.82
S (m²) 12
ØE (mm) 8.5
Bearings Delrin ®
Coupling units aluminium
+ screws
Number of grooves 1

Plastimo S Series Specifications

General

Brand	Plastimo
Model	S Series
Category	Boating Equipment
Language	English
