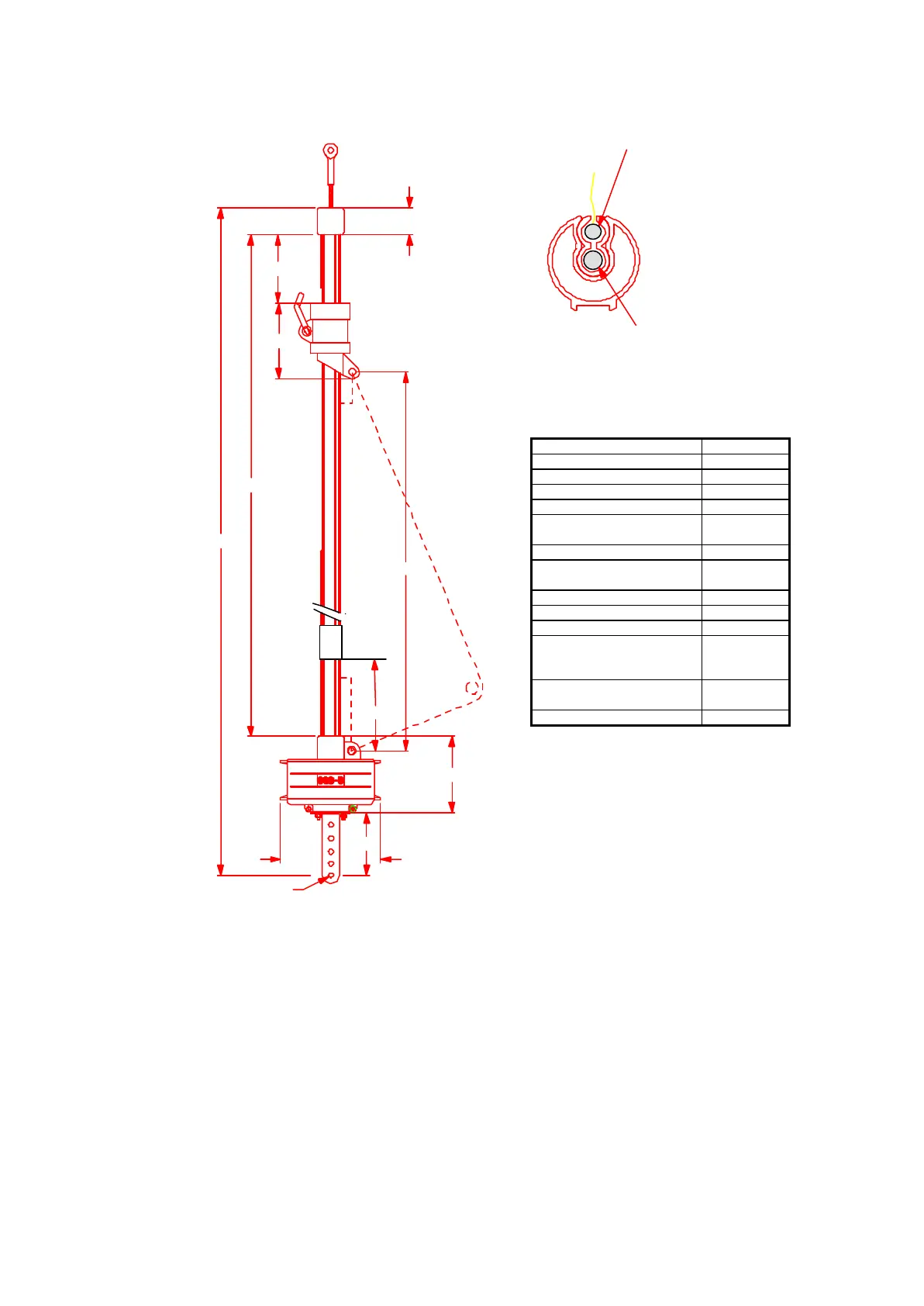

608-S MODEL
45
50
128
A
B
D
S
129
C
Ø 184
Ø E
Ø 6.5 mm
Ø 4 - 7 mm
450
Modèle 608-S
Réf. N° chainplate version 25724
Réf. N° turnbuckle version 25725
Forestay diameter (mm) 4 - 7
Luffrope diameter (mm) 6.5
Length A chainplate (m)
Length A turnbuckle (m)
9.22
9.40
Length B (m) 8.94
Length C chainplate (mm)
Length C turnbuckle (mm)
115
285
Lenth.D (m) 8.80
S (m²) 25
Ø E (mm) 12.5
Bearings Delrin ®
& stainless
steel
Coupling units aluminium +
screws
Number of grooves 1
