Playtime Engineering Blipblox After Dark - Led Display Guide

- 7 -

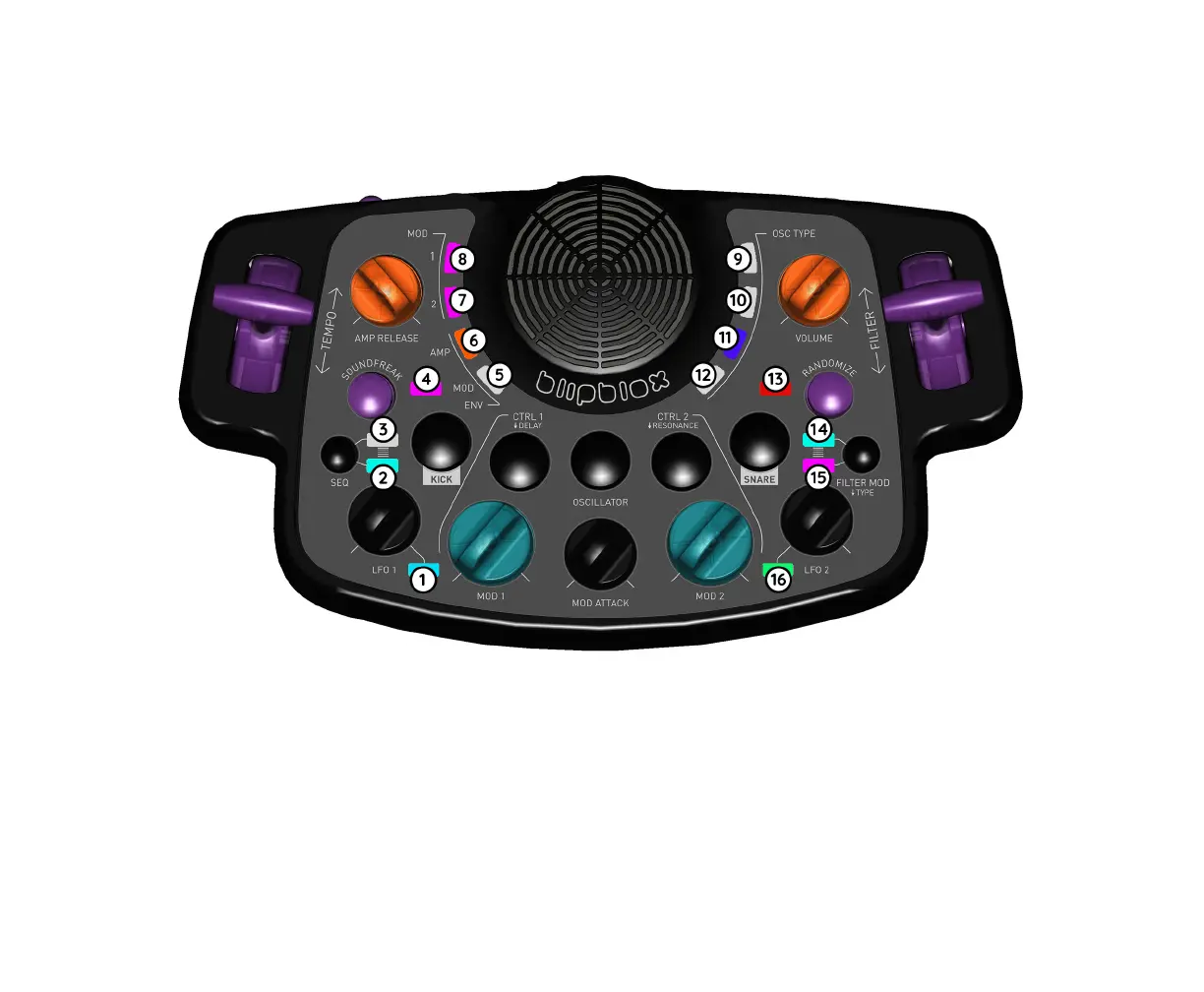

LED DISPLAY GUIDE
(1) LFO 1 speed. This LED ashes to show the speed of LFO 1.
(2) Sequencer Indicator. This LED ashes on each beat when the sequencer is running.
(3) MIDI status. This LED ashes when valid MIDI note on is received. Blue indicates a synthesizer note, green
indicates a drum note.
(4) Delay eect amount. This LED indicates the amount of delay that is applied to the output. Blue is no delay,
red is maximum delay.
(5) MOD ENV. The brightness of this LED corresponds to the value of the modulation envelope.
(6) AMP ENV. The brightness of this LED corresponds to the value of the amplier envelope.
